Qorvo provides a recommended PCB layout guide for the ACT4514SH-T, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow this guide to ensure optimal performance, low noise, and high reliability.
The ACT4514SH-T has a high power density, so thermal management is crucial. Qorvo recommends using a thermal pad or heat sink to dissipate heat, and ensuring good airflow around the device. The datasheet provides thermal resistance values to help with thermal design.
Qorvo recommends using X7R or X5R ceramic capacitors with a value of 10uF to 22uF for input and output decoupling. The datasheet provides more information on the recommended capacitor values and placement.
To ensure EMC, Qorvo recommends using a shielded enclosure, keeping the device away from noise sources, and using filtering components such as ferrite beads or common-mode chokes. The datasheet provides more information on EMC considerations.
Qorvo recommends using a soldering profile with a peak temperature of 260°C to 280°C, and a dwell time of 30 seconds to 60 seconds. The datasheet provides more information on the recommended soldering profile.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACT4514SH-T Overview

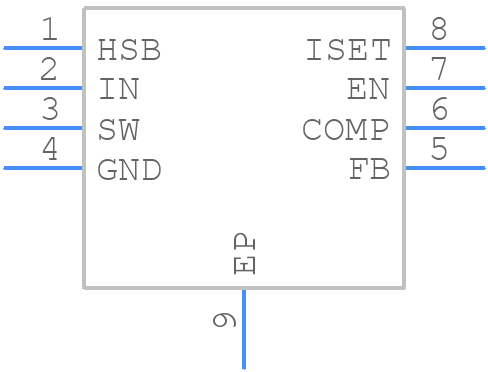

Use the download button to access the ACT4514SH-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACT45,
or try a keyword search, such as Switching Regulator or Controllers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
