Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The output capacitor value depends on the specific application requirements, such as output voltage ripple, transient response, and stability. A general guideline is to use a capacitor with a value between 10uF to 22uF, with a voltage rating of at least 2x the output voltage. However, it's recommended to consult Qorvo's application notes and simulation tools to determine the optimal capacitor value for your specific design.
While the datasheet specifies an operating temperature range of -40°C to 125°C, the maximum ambient temperature for reliable operation depends on the specific application and thermal management. As a general guideline, it's recommended to keep the ambient temperature below 85°C to ensure reliable operation and minimize thermal-related failures.
To ensure EMC compliance, follow Qorvo's guidelines for PCB layout, component selection, and shielding. Additionally, consider using electromagnetic interference (EMI) filters, such as common-mode chokes or ferrite beads, to reduce radiated emissions. It's also recommended to perform EMC testing and simulation to validate your design's compliance with relevant standards.
The recommended input capacitor value and type depend on the specific application requirements, such as input voltage ripple, noise filtering, and transient response. A general guideline is to use a ceramic or film capacitor with a value between 1uF to 10uF, with a voltage rating of at least 2x the input voltage. However, it's recommended to consult Qorvo's application notes and simulation tools to determine the optimal input capacitor value and type for your specific design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACT4523AYH-T Overview

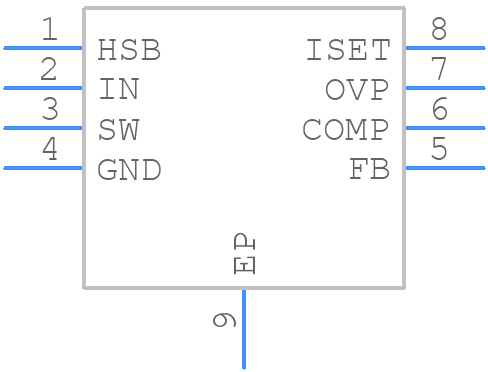

Use the download button to access the ACT4523AYH-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACT45,
or try a keyword search, such as Switching Regulator or Controllers
