Qorvo provides a recommended PCB layout guide for the ACT4525YH-T0001, which includes guidelines for component placement, trace routing, and thermal management. It's essential to follow this guide to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor values depend on the input voltage, output voltage, and output current requirements. Qorvo recommends using X7R or X5R ceramic capacitors with a minimum capacitance of 10uF and a voltage rating of 1.5 times the maximum input voltage. The datasheet provides a more detailed calculation method for selecting the correct input capacitor values.
The ACT4525YH-T0001 has a thermal derating of 1.5°C/W above 25°C. This means that for every 1°C increase in ambient temperature above 25°C, the maximum output current must be derated by 1.5%. This is to ensure the device operates within its safe operating area and prevents overheating.
Yes, the ACT4525YH-T0001 is qualified for high-reliability and automotive applications. It meets the requirements of AEC-Q100 and is manufactured using automotive-grade processes. However, it's essential to review the device's qualification data and perform additional testing to ensure it meets the specific requirements of your application.
Qorvo provides a troubleshooting guide for the ACT4525YH-T0001, which covers common issues like output voltage droop, oscillation, and overcurrent protection. The guide provides step-by-step procedures for identifying and resolving these issues, including checking the input voltage, output capacitor values, and PCB layout.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACT4525YH-T0001 Overview

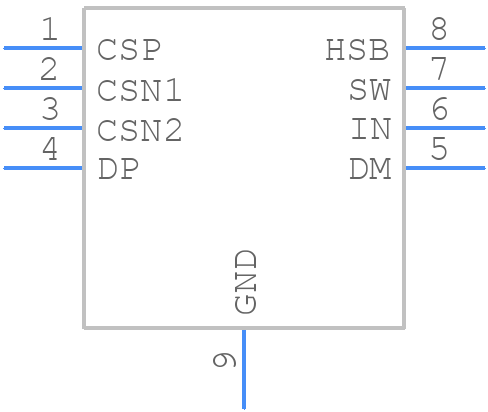

Use the download button to access the ACT4525YH-T0001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACT45,
or try a keyword search, such as Switching Regulator or Controllers
About Qorvo
Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
