ACT4529MYH-T0010 - Qorvo

Description: • AEC-Q100 Automotive Qualified • -40 °C ~ 125 °C Junction Temperature Range Automotive Qualified • Passes SAE J1752 M8A EMC testing • Quick Charge™ 2.0 Certified by Qualcomm® and UL. − UL Certificate No. 4787083099-1 − https://www.qualcomm.com/documents/quickcharge-device-list • 40 V Input Voltage Surge • 4.5 V - 36 V Operational Input Voltage • 5.1 V/9.1 V/12.1 V Output with +/-1% Accuracy • Up to 3.0 A Output current • Constant Current Regulation Limit • QC2.0 + Auto-Detect + USB-PD Type-C Sup

Download ACT4529MYH-T0010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

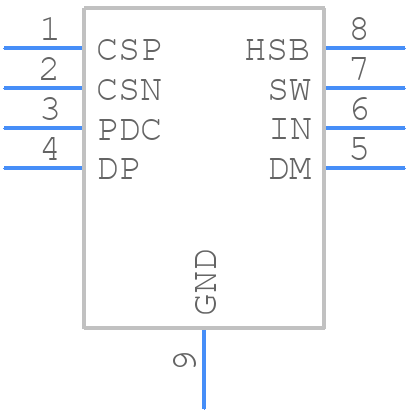

ACT4529MYH-T0010 - Qorvo - PCB symbol
click to zoom
PCB Footprints
ACT4529MYH-T0010 - Qorvo PCB footprint - Small Outline Packages - Small Outline Packages - SOP-8 EP PACKAGE OUTLINE AND DIMENSIONS-3
click to zoom
3D Models
ACT4529MYH-T0010 - Qorvo - 3D model - Small Outline Packages - SOP-8 EP PACKAGE OUTLINE AND DIMENSIONS-3
click to zoom

ACT4529MYH-T0010 Details

  • Manufacturer Part Number:

    ACT4529MYH-T0010

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

ACT4529MYH-T0010 Frequently Asked Questions (FAQs)

  • Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-2171, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal performance and thermal dissipation.
  • Qorvo recommends using their Filter Design Tool (FDT) software to optimize the output filter design for the ACT4529MYH-T0010. The FDT tool helps designers to select the optimal filter components and values for their specific application.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, Qorvo recommends derating the device's output power and current handling capabilities above 85°C to ensure reliable operation and prevent thermal shutdown.
  • Qorvo provides guidelines for EMC and EMI compliance in their application note AN-2172, which includes recommendations for PCB layout, shielding, and filtering to minimize electromagnetic emissions and susceptibility.
  • Qorvo recommends using a low-ESR ceramic capacitor with a value of 10uF to 22uF, placed as close as possible to the VIN pin, to ensure stable input voltage and minimize noise coupling.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACT4529MYH-T0010 Overview

Use the download button to access the ACT4529MYH-T0010 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACT45, or try a keyword search, such as Switching Regulator or Controllers
