Qorvo provides a recommended PCB layout and thermal management guidelines in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, thermal dissipation, and to prevent thermal shutdown.
The selection of input and output capacitors depends on the specific application, operating frequency, and desired performance. Qorvo recommends using X5R or X7R ceramic capacitors with a voltage rating of at least 2x the maximum input voltage. The capacitance value should be chosen based on the desired ripple voltage and transient response.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Qorvo recommends operating the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
To ensure EMI compliance, it's essential to follow proper PCB layout and design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding or filtering components. Qorvo also recommends following the guidelines outlined in their application notes and design guides.
Qorvo recommends following the JEDEC J-STD-020D.1 standard for soldering and reflow processes. The recommended soldering temperature profile is 260°C peak reflow temperature, with a maximum time above 220°C of 60 seconds.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACT4529YH-T0011 Overview

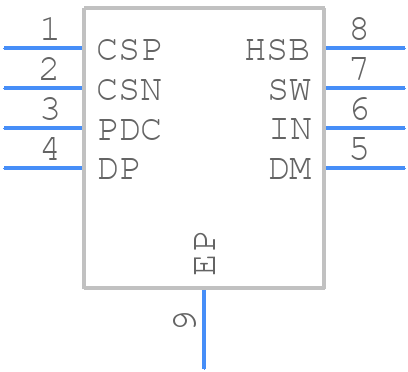

Use the download button to access the ACT4529YH-T0011 schematic symbol, PCB footprint, and 3D model.
