Description:Quick Charge™ 2.0 Certified by Qualcomm® and UL.
− UL Certificate No. 4787083099-1
− https://www.qualcomm.com/documents/quickcharge-device-list
• 40 V Input Voltage Surge
• 4.5 V-36 V Operational Input Voltage
• 5.1 V/9.1 V/12.1 V Output with +/-1% Accuracy
• Up to 3.0 A Output current
• Constant Current Regulation Limit
• QC2.0 Decoding + USB Auto-Detect + USB-PD
Type-C Support
• Support Apple 2.4 A, Samsung and BC1.2
• Hiccup Mode Protection at Output Short
• >90% Efficiency at Full Load
• 0.
Qorvo provides a recommended PCB layout and thermal management guide in their application note AN-2171, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal performance and thermal dissipation.
Qorvo recommends following the biasing and configuration guidelines outlined in the datasheet and application notes. Additionally, engineers can consult with Qorvo's technical support team or use simulation tools like SPICE models to validate their design.
The ACT4529YH-T1011 has undergone various reliability and qualification tests, including JEDEC and AEC-Q100 standards, to ensure its performance and reliability in harsh environments. Qorvo provides detailed information on these tests in their reliability report, which can be requested from their technical support team.
Qorvo provides troubleshooting guidelines and fault diagnosis procedures in their application notes and technical support resources. Engineers can also consult with Qorvo's technical support team for assistance with specific issues.
Yes, Qorvo recommends following standard ESD protection and handling precautions when working with the ACT4529YH-T1011, including using ESD-safe workstations, wrist straps, and packaging materials to prevent damage from electrostatic discharge.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACT4529YH-T1011 Overview

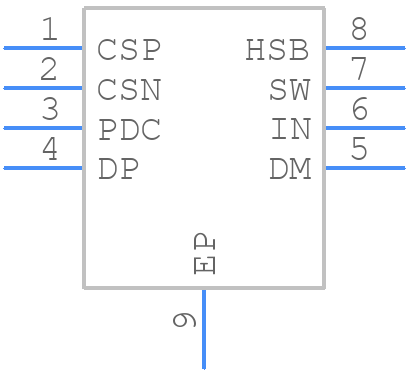

Use the download button to access the ACT4529YH-T1011 schematic symbol, PCB footprint, and 3D model.
