Description:• AEC-Q100 Automotive Qualified
• -40 °C ~ 125 °C Junction Temperature Range
• 12 V Input Optimized (Automotive Applications)
• QC2.0 Decoding + USB Auto-Detect + USB-PD
Type-C Support
• Apple MFi and 2.4 A compatible
• Samsung and BC1.2 compatible
• 40 V Input Voltage Surge
• 4.5 V - 36 V Operational Input Voltage
• 5.1 V/9.1 V Output with +/-1% Accuracy
• Up to 3.0 A Output current
• Constant Current Regulation Limit
• Hiccup Mode Protection at Output Short
• >90% Efficiency at Full Load
• 0
Qorvo provides a recommended PCB layout in their application note AN-2171, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The input capacitor values depend on the input voltage, output voltage, and output current requirements. Qorvo recommends using X7R or X5R ceramic capacitors with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the input voltage. The application note AN-2171 provides more detailed guidance on capacitor selection.
The ACT4530MYH-T0010 has a thermal derating of 1.5°C/W above 25°C. This means that for every 1°C increase in ambient temperature above 25°C, the maximum output current must be reduced by 1.5% to prevent overheating.
Yes, the ACT4530MYH-T0010 is qualified to AEC-Q100 Grade 1, which means it meets the reliability and performance requirements for automotive and high-reliability applications. However, additional testing and validation may be required depending on the specific application and industry standards.
Qorvo provides a troubleshooting guide in their application note AN-2171, which covers common issues and their causes, as well as recommended solutions and debugging techniques. Additionally, Qorvo's technical support team can provide further assistance and guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ACT4530MYH-T0010 Overview

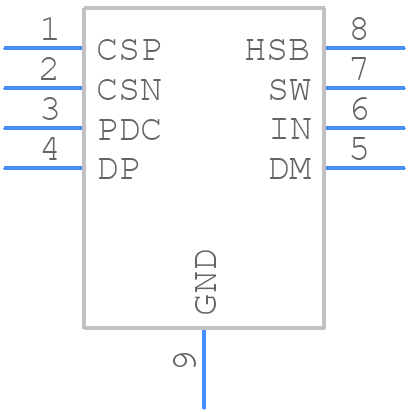

Use the download button to access the ACT4530MYH-T0010 schematic symbol, PCB footprint, and 3D model.
