ACT4533AYH-T - Qorvo

Description: 40 V, 3 A, Active CC, High-Efficiency Step-Down Converter

Download ACT4533AYH-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

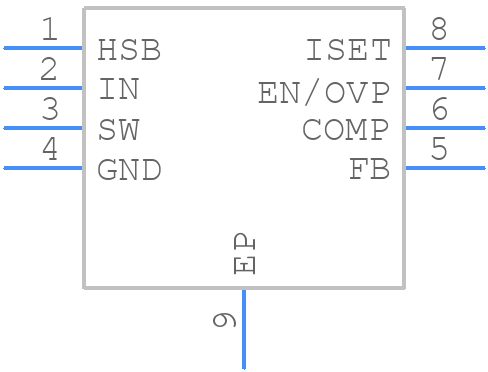

ACT4533AYH-T - Qorvo - PCB symbol
click to zoom
PCB Footprints
ACT4533AYH-T - Qorvo PCB footprint - Small Outline Packages - Small Outline Packages - SOP-8EP
click to zoom
3D Models
ACT4533AYH-T - Qorvo - 3D model - Small Outline Packages - SOP-8EP
click to zoom

ACT4533AYH-T Details

  • Manufacturer Part Number:

    ACT4533AYH-T

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Date Of Intro:

    2019-09-09

  • Manufacturer:

    Qorvo

  • Analog IC - Other Type:

    SWITCHING REGULATOR

ACT4533AYH-T Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • The ACT4533AYH-T requires a 3.3V power supply and a bias voltage of 1.8V on the VBIAS pin. Ensure the bias voltage is stable and noise-free for optimal performance.
  • The ACT4533AYH-T is rated for operation from -40°C to +85°C. However, it's recommended to derate the device for reliable operation above 70°C.
  • The ACT4533AYH-T has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing to prevent damage.
  • The recommended input impedance is 50 ohms, and the output impedance is 50 ohms or lower. Impedance matching is critical for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ACT4533AYH-T Overview

Use the download button to access the ACT4533AYH-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ACT45, or try a keyword search, such as Switching Regulator or Controllers
