ACTA22 - Panasonic

ACTA22 Details

• Manufacturer Part Number:

  ACTA22

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.05

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  7

• Body Breadth:

  17 mm

• Body Height:

  14 mm

• Body Length or Diameter:

  19.8 mm

• Coil Operate Voltage(DC):

  6.5 V

• Coil Release Voltage(DC):

  0.8 V

• Coil Resistance:

  160 Ω

• Coil Voltage(DC)-Max:

  16 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact Current(DC)-Max:

  20 A

• Contact (DC) Max Rating R Load:

  20A@14VDC

• Contact Resistance:

  5 mΩ

• Contact Voltage(DC)-Max:

  14 V

• Contact/Output Supply Type:

  DC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Alloy

• Input Switching Control Type:

  Random

• Insulation Resistance:

  100000000 Ω

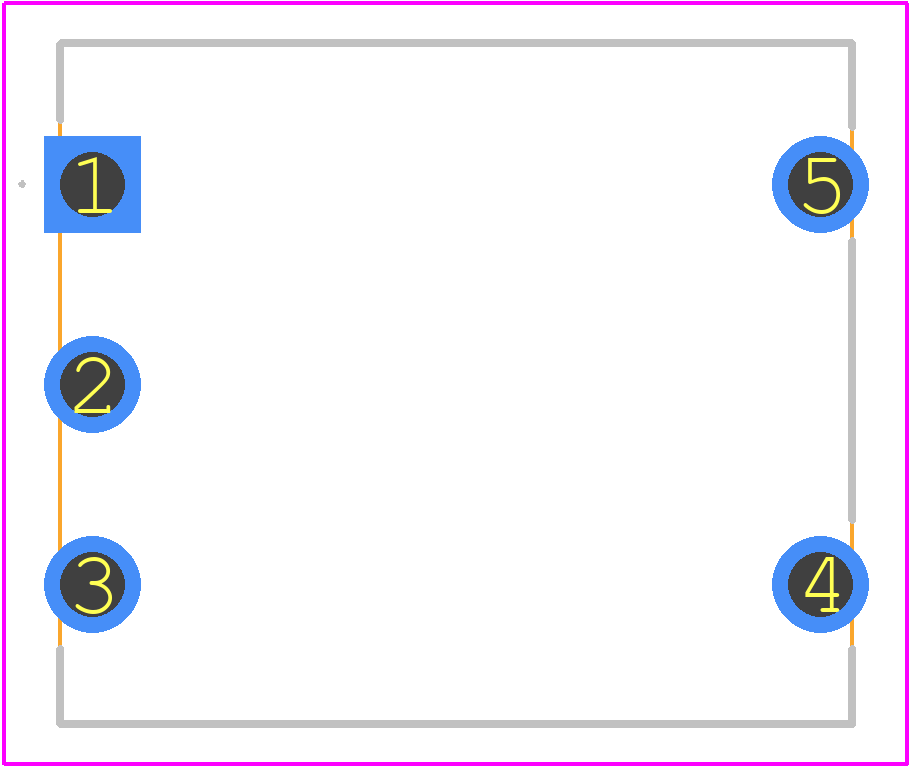

• Number of Terminals:

  5

• Operate Time:

  10 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Physical Dimension:

  19.8mm x 17mm x 14mm

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM C

• Relay Function:

  SPDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Terminal Length:

  0.003500127000254001 inch

• Termination Type:

  SOLDER
