ACTBPDR4V footprint, schematic symbol and 3D model by Panasonic

Symbol

click to zoom

PCB Footprints

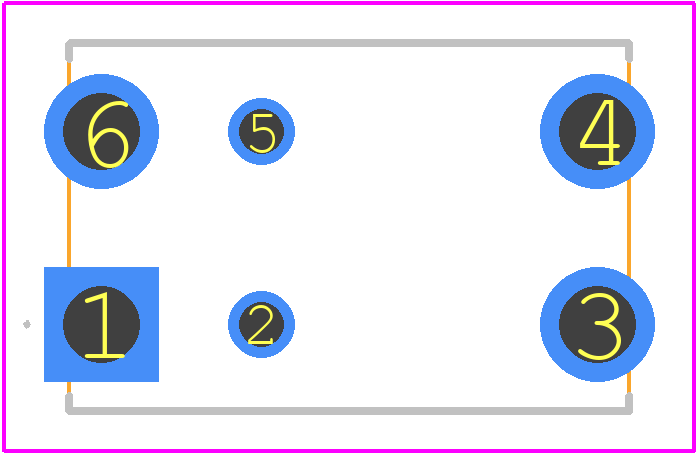

ACTBPDR4V - Panasonic PCB footprint - Other - Other - ACTBPDR4V-1

click to zoom

3D Models

ACTBPDR4V - Panasonic - 3D model - Other - ACTBPDR4V-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ACTBPDR4V
Part Number ACTBPDR4V
Manufacturer Panasonic
Pin Count 6
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - ACTBPDR4V-1
Released Date Mar 2, 2023
Last Modified Date Oct 26, 2023 6:27 AM UTC
Pinout / Pin List Click Here (Member Only)

ACTBPDR4V Details

Manufacturer Part Number:
ACTBPDR4V
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.41.00.05
Manufacturer:
Panasonic Electronic Components
YTEOL:
6
Body Breadth:
9.2 mm
Body Height:
14 mm
Body Length or Diameter:
14 mm
Coil Current(DC)-Max:
0.04 A
Coil Operate Voltage(DC):
7 V
Coil Power:
480 mW
Coil Release Voltage(DC):
0.5 V
Coil Resistance:
300 Ω
Coil Voltage(DC)-Max:
16 V
Coil Voltage-Nom:
12 V
Coil/Input Supply Type:
DC
Contact Current(DC)-Max:
30 A
Contact (DC) Max Rating R Load:
30A@14VDC
Contact Resistance:
50 mΩ
Contact Voltage(DC)-Max:
14 V
Contact/Output Supply Type:
DC
Electrical Life:
100000 Cycle(s)
End Contact Material:
Silver Alloy
End Contact Plating:
COPPER
Input Switching Control Type:
Random
Insulation Resistance:
100000000 Ω
Mounting Feature:
THROUGH HOLE-STRAIGHT
Number of Terminals:
6
Operate Time:
10 ms
Operating Temperature-Max:
110 °C
Operating Temperature-Min:
-40 °C
Packing Method:
BOX
Physical Dimension:
14mm x 9.2mm x 14mm
Relay Action:
MOMENTARY
Relay Form:
1 FORM A
Relay Function:
SPST
Relay Type:
POWER/SIGNAL RELAY
Release Time:
10 ms
Surface Mount:
NO
Terminal Length:
0.0029972059944119887 inch
Termination Type:
SOLDER

ACTBPDR4V Frequently Asked Questions (FAQs)

Panasonic recommends a PCB layout with a solid ground plane, short and wide traces for the input and output pins, and a decoupling capacitor (e.g., 10nF) between the input pin and the ground plane to minimize noise and ensure stable operation.
The ACTBPDR4V has an internal overvoltage protection (OVP) circuit that protects the device from input voltages exceeding 6.5V. When an overvoltage condition is detected, the OVP circuit limits the output voltage to prevent damage to the device.
The maximum allowed power dissipation for the ACTBPDR4V is 1.5W. Exceeding this limit can cause the device to overheat, leading to reduced performance or even failure.
The ACTBPDR4V is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to ensure proper heat dissipation and follow the recommended operating conditions to maintain optimal performance.
Yes, the ACTBPDR4V is compatible with lead-free soldering processes. Panasonic ensures that their devices meet the requirements for lead-free soldering, making them suitable for use in RoHS-compliant applications.

Trust Checks

Community Provided

System Verified

Community Approved

ACTBPDR4V Overview

Use the download button to access the ACTBPDR4V schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ACTBP, or try a keyword search, such as Power/Signal Relays
