ACTC6CR6 - Panasonic

Description: Large capacity switching despite small size, 75 Ω, 1A, 6V DC, -40 to ＋110 ℃, 2 Form A

Download ACTC6CR6 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ACTC6CR6 model

Email notifications will be applied after download.

Send part feedback

Symbol

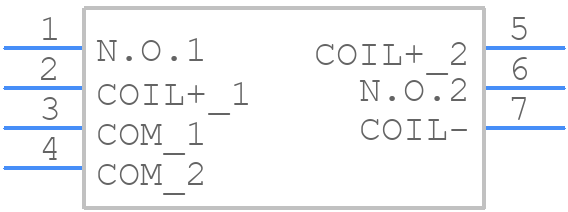

ACTC6CR6 - Panasonic - PCB symbol

PCB Footprints

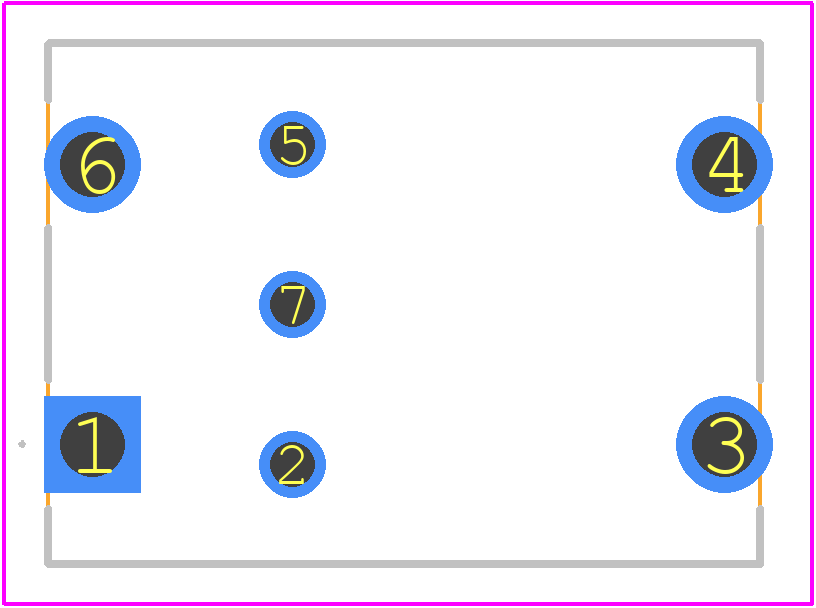

ACTC6CR6 - Panasonic PCB footprint - Other - Other - ACTC6CR6-4

3D Models

ACTC6CR6 - Panasonic - 3D model - Other - ACTC6CR6-4

Datasheet Download Datasheet
Stock & Prices Price & Stock for ACTC6CR6
Part Number ACTC6CR6
Manufacturer Panasonic
Pin Count 7
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - ACTC6CR6-4
Released Date Nov 10, 2025
Last Modified Date Dec 9, 2025 9:57 AM UTC
Pinout / Pin List Click Here (Member Only)

ACTC6CR6 Details

Manufacturer Part Number:
ACTC6CR6
Part Life Cycle Code:
Active
Reach Compliance Code:
Unknown
ECCN Code:
EAR99
HTS Code:
8536.41.00.50
Manufacturer:
Panasonic Electronic Components

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ACTC6CR6 Overview

Use the download button to access the ACTC6CR6 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ACTC6, or try a keyword search, such as Special Relays
