AD1862N footprint, schematic symbol and 3D model by Analog Devices

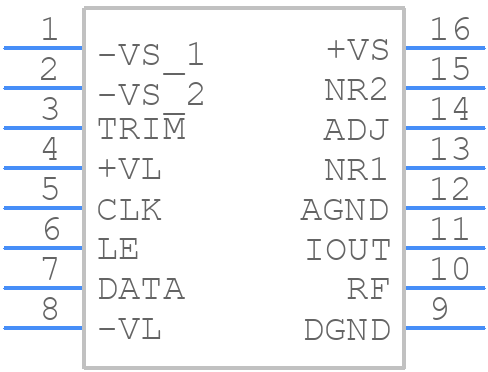

Symbol

click to zoom

PCB Footprints

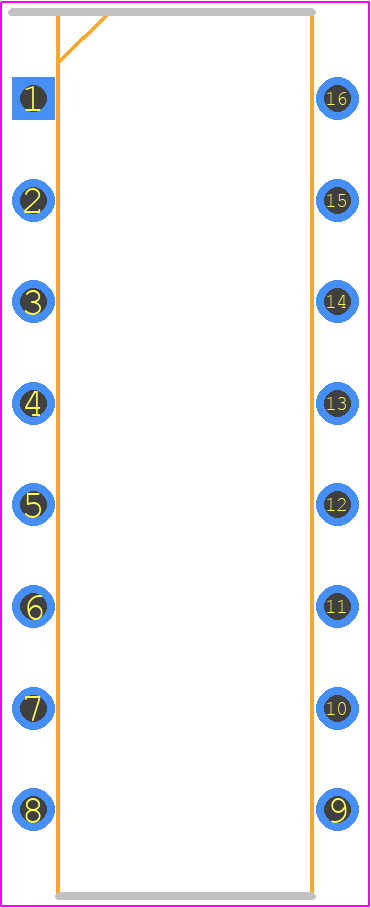

AD1862N - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - Plastic DIP (N-16)

click to zoom

3D Models

AD1862N - Analog Devices - 3D model - Dual-In-Line Packages - Plastic DIP (N-16)

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for AD1862N
Part Number AD1862N
Manufacturer Analog Devices
Pin Count 16
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - Plastic DIP (N-16)
Released Date Aug 4, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AD1862N Details

Manufacturer Part Number:
AD1862N
Part Life Cycle Code:
Obsolete
Part Package Code:
DIP
Package Description:
PLASTIC, DIP-16
Pin Count:
16
HTS Code:
8542.39.00.40
Manufacturer:
Analog Devices Inc
YTEOL:
0
Converter Type:
D/A CONVERTER
Input Bit Code:
2'S COMPLEMENT BINARY
Input Format:
SERIAL
JESD-30 Code:
R-PDIP-T16
JESD-609 Code:
e0
Length:
20.13 mm
Negative Supply Voltage-Nom:
-12 V
Number of Bits:
20
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-25 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP16,.3
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Qualification Status:
Not Qualified
Seated Height-Max:
5.33 mm
Settling Time-Nom (tstl):
0.35 µs
Supply Current-Max:
16 mA
Supply Voltage-Nom:
12 V
Surface Mount:
NO
Technology:
BICMOS
Temperature Grade:
OTHER
Terminal Finish:
TIN LEAD
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Width:
7.62 mm

AD1862N Frequently Asked Questions (FAQs)

The recommended power-up sequence is to apply VCC first, followed by VREF, and then the analog input signal. This ensures proper operation and prevents damage to the device.
To optimize performance in a noisy environment, use a low-pass filter at the input, keep the analog and digital grounds separate, and use a decoupling capacitor between VCC and GND. Additionally, consider using a shielded enclosure and keeping the device away from high-frequency sources.
The maximum input voltage that the AD1862N can handle is 5.5V, which is the maximum rating for the VCC supply voltage. Exceeding this voltage can damage the device.
To ensure accurate conversions, use a high-quality reference voltage source, keep the analog input signal within the specified range, and ensure proper grounding and shielding. Additionally, consider using a calibration routine to compensate for any offset or gain errors.
The typical settling time for the AD1862N is 10µs, which is the time it takes for the output to settle to within 1 LSB of the final value after a change in the input signal.

Trust Checks

Community Provided

System Verified

Community Approved

AD1862N Overview

Use the download button to access the AD1862N schematic symbol, PCB footprint, and 3D model.
