- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD1865N
- Part Number AD1865N
- Manufacturer Analog Devices
- Pin Count 24
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages

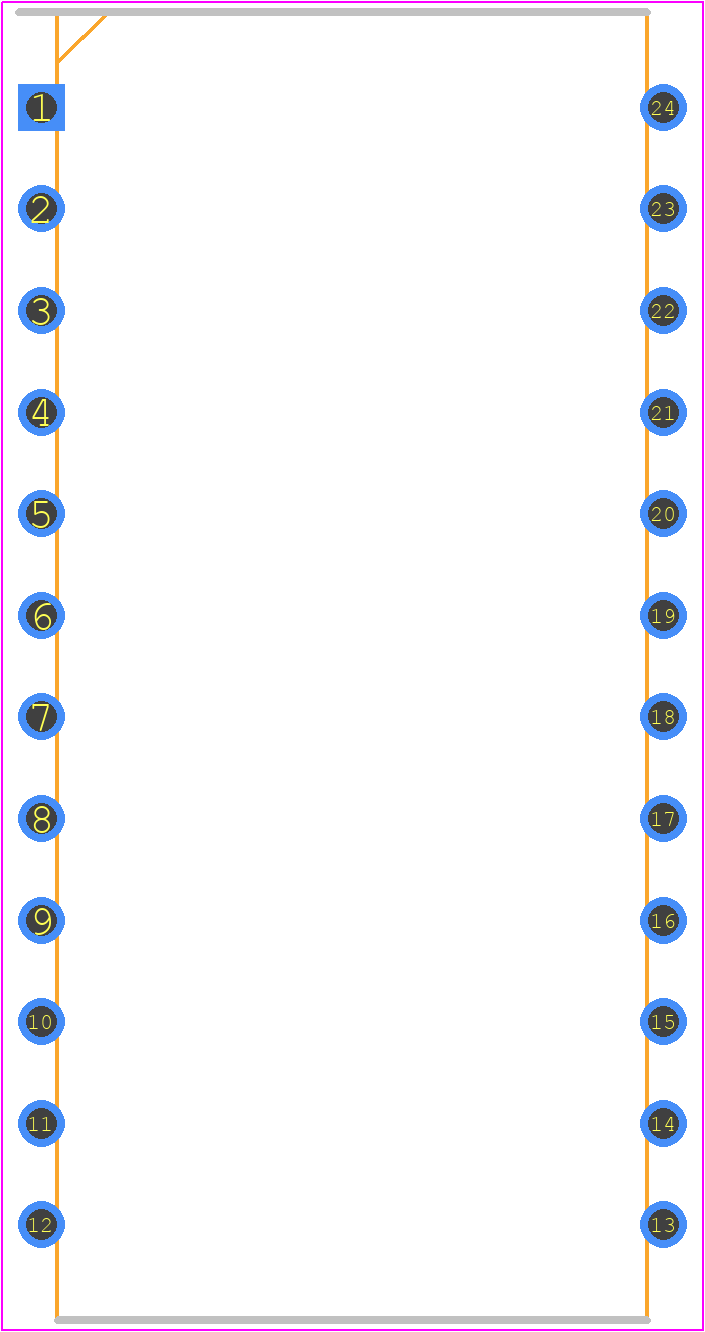

- Footprint Name Dual-In-Line Packages - 24-Pin Plastic DIP (N-24A) Package
- Released Date May 17, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD1865N Details
-
Manufacturer Part Number:
AD1865N
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
PLASTIC, DIP-24
-
Pin Count:
24
-
HTS Code:
8542.39.00.40
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
0
-
Analog Output Voltage-Max:
3 V
-
Analog Output Voltage-Min:
-3 V
AD1865N Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply VCC first, followed by VREF, and then the analog input signal. This ensures proper operation and prevents damage to the device.
-
To optimize performance in a noisy environment, use a low-pass filter at the input, keep the analog and digital grounds separate, and use a decoupling capacitor between VCC and GND. Additionally, consider using a shielded enclosure and keeping the device away from high-frequency sources.
-
The maximum allowed input voltage for the AD1865N is 5V, which is the same as the supply voltage (VCC). Exceeding this voltage can damage the device.
-
To ensure accurate conversions, use a stable and low-noise reference voltage (VREF), keep the analog input signal within the specified range, and use a proper layout and grounding technique to minimize noise and interference.
-
Yes, the AD1865N can be used in a multiplexed configuration. However, it's essential to ensure that the multiplexer is properly designed and laid out to minimize crosstalk and noise. Additionally, consider using a sample-and-hold circuit to maintain the input signal during conversion.
Trust Checks
Community Provided
System Verified
Community Approved
AD1865N Overview

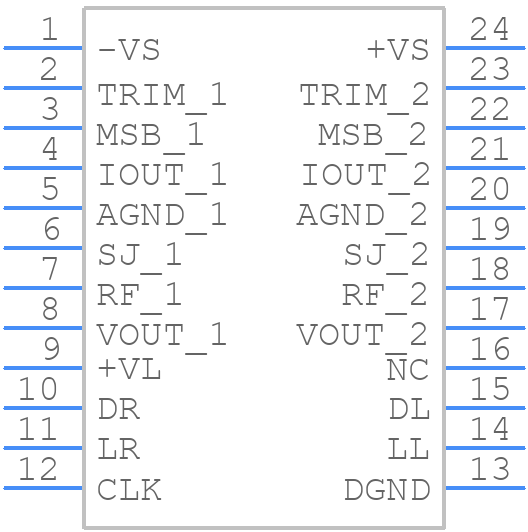

Use the download button to access the AD1865N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD186,
or try a keyword search, such as Digital to Analog Converters
