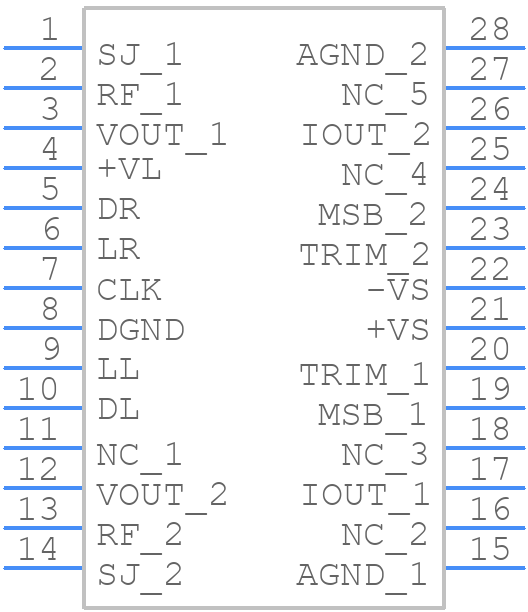

Symbol

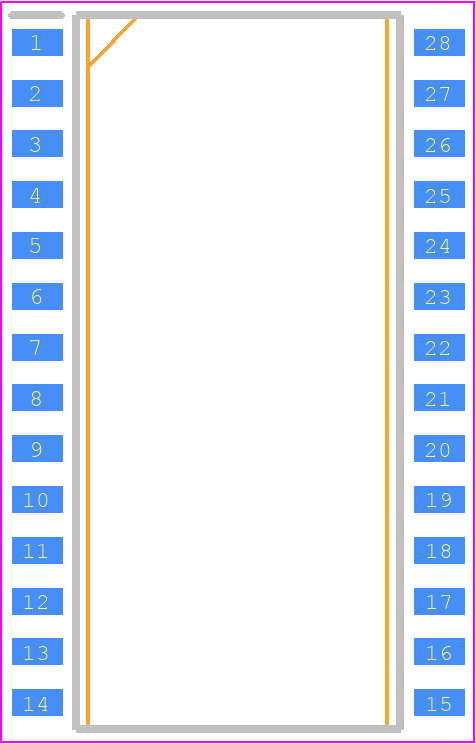

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD1865R
- Part Number AD1865R
- Manufacturer Analog Devices
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - R-28(SOIC)_3
- Released Date Dec 13, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD1865R Details
-
Manufacturer Part Number:
AD1865R
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SOIC-28
-
Pin Count:
28
-
HTS Code:
8542.39.00.40
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
0
-
Analog Output Voltage-Max:
3 V
-
Analog Output Voltage-Min:
-3 V
AD1865R Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply VCC first, followed by VREF, and then the analog input signal. This ensures proper operation and prevents damage to the device.
-
To optimize performance in a noisy environment, use a low-pass filter at the input, keep the analog and digital grounds separate, and use a decoupling capacitor between VCC and GND. Additionally, consider using a shielded enclosure and keeping the device away from high-frequency sources.
-
The maximum allowed input voltage for the AD1865R is 5.5V, which is the absolute maximum rating. However, the recommended input voltage range is 0V to 5V to ensure optimal performance and prevent damage to the device.
-
Yes, the AD1865R can be used in a multiplexed application. However, it's essential to ensure that the multiplexer is properly designed and laid out to minimize crosstalk and signal degradation. Additionally, consider using a sample-and-hold circuit to maintain signal integrity.
-
To troubleshoot issues with the AD1865R, start by verifying the power supply voltages, checking for proper grounding, and ensuring that the input signal is within the recommended range. Use an oscilloscope to visualize the input and output signals, and consult the datasheet and application notes for guidance.
Trust Checks
Community Provided
System Verified
Community Approved
AD1865R Overview
Use the download button to access the AD1865R schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like AD186,
or try a keyword search, such as Digital to Analog Converters
