- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD1866N
- Part Number AD1866N
- Manufacturer Analog Devices
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages

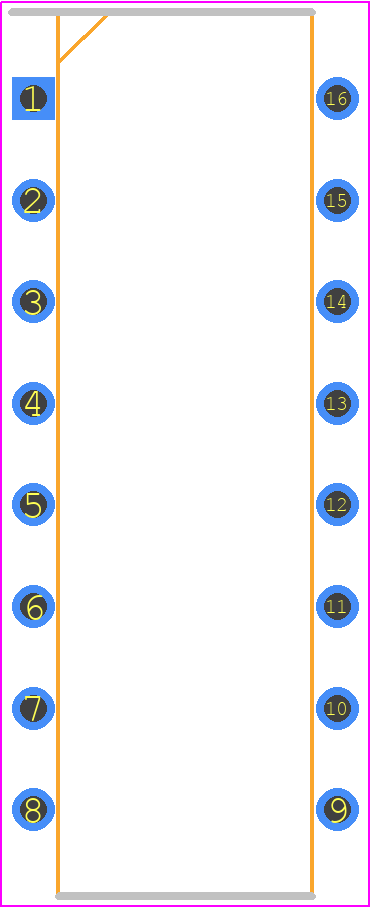

- Footprint Name Dual-In-Line Packages - N-16_4
- Released Date Oct 20, 2017
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD1866N Details
-
Manufacturer Part Number:
AD1866N
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
DIP
-
Package Description:
PLASTIC, DIP-16
-
Pin Count:
16
-
HTS Code:
8542.39.00.40
-
Manufacturer:
Analog Devices Inc
-
YTEOL:
0
-
Analog Output Voltage-Max:
1 V
-
Analog Output Voltage-Min:
-1 V
-
Converter Type:
D/A CONVERTER
AD1866N Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply VCC first, followed by VREF, and then the analog input signals. This ensures proper operation and prevents damage to the device.
-
To optimize performance in a noisy environment, use proper PCB layout techniques, such as separating analog and digital grounds, using decoupling capacitors, and shielding the device from electromagnetic interference (EMI). Additionally, consider using a low-pass filter on the analog input signals to reduce noise.
-
The maximum allowable input voltage range for the AD1866N is from -VREF to +VREF. Exceeding this range can cause damage to the device or affect its performance.
-
To ensure accurate conversion results, ensure that the analog input signals are within the specified range, the reference voltage (VREF) is stable and accurate, and the device is operated within its specified temperature range. Additionally, consider calibrating the device during production or using a calibration routine in the system software.
-
The typical settling time for the AD1866N is around 10-15 clock cycles, depending on the clock frequency and the specific application. This is the time it takes for the device to settle to its final conversion result after a change in the analog input signal.
Trust Checks
Community Provided
System Verified
Community Approved
AD1866N Overview

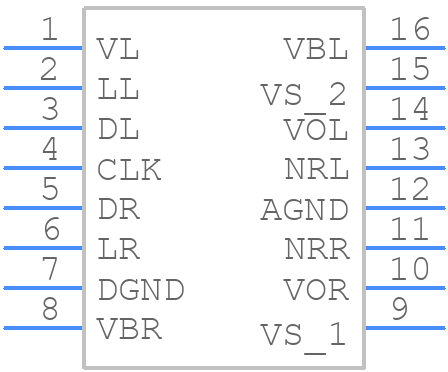

Use the download button to access the AD1866N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD186,
or try a keyword search, such as Digital to Analog Converters
