AD1955ARSZ - Analog Devices

Description: Audio D/A Converter ICs 24 Bit 192kHZ DAC 123 Db DNR wSACD

Download AD1955ARSZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

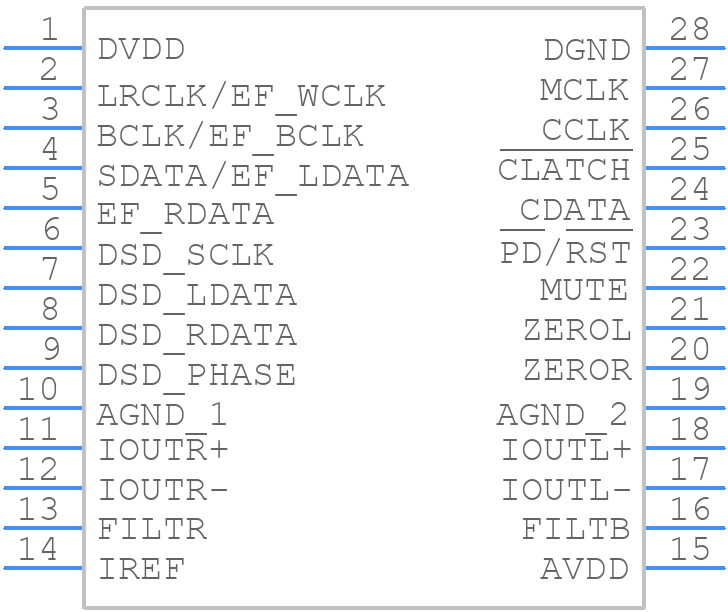

AD1955ARSZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD1955ARSZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 28-Lead SSOP_
click to zoom
3D Models
AD1955ARSZ - Analog Devices - 3D model - Small Outline Packages - 28-Lead SSOP_
click to zoom

AD1955ARSZ Details

  • Manufacturer Part Number:

    AD1955ARSZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    SSOP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    RS-28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    24

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    0.022 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

AD1955ARSZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VCC, and then the analog inputs. This ensures proper device operation and prevents damage.
  • To optimize performance in a noisy environment, use proper PCB layout techniques, such as separating analog and digital grounds, using decoupling capacitors, and shielding the device. Additionally, consider using a low-pass filter or a ferrite bead to reduce high-frequency noise.
  • The maximum allowed input voltage for the AD1955ARSZ is 2.5V, which is the maximum voltage rating for the analog inputs. Exceeding this voltage may damage the device.
  • To configure the AD1955ARSZ for differential input operation, connect the positive and negative inputs to the respective pins. For single-ended operation, connect the input signal to the positive input pin and tie the negative input pin to ground or a reference voltage.
  • The recommended clock frequency for the AD1955ARSZ is between 10 kHz and 50 kHz. Operating the device outside of this range may affect its performance and accuracy.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD1955ARSZ Overview

Use the download button to access the AD1955ARSZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD195, or try a keyword search, such as Digital to Analog Converters
