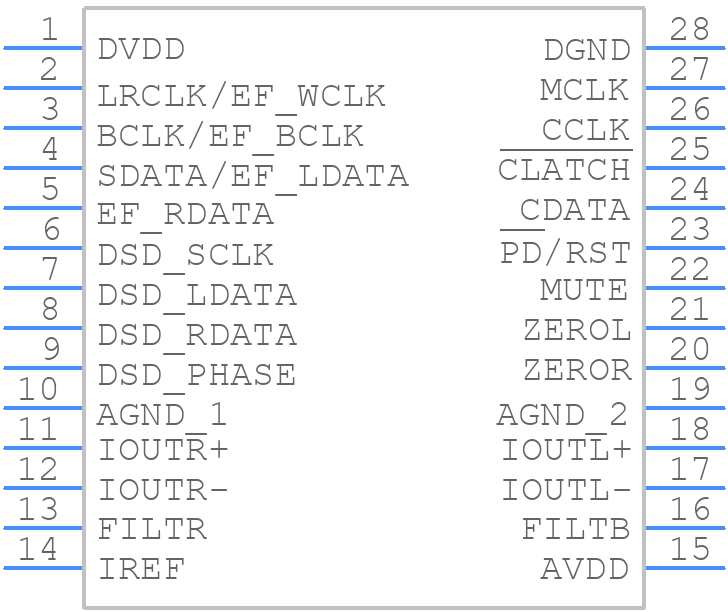

AD1955ARSZRL - Analog Devices

AD1955ARSZRL Frequently Asked Questions (FAQs)

• What is the recommended power-up sequence for the AD1955ARSZRL?
  The recommended power-up sequence is to apply the analog supply voltage (VCC) first, followed by the digital supply voltage (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
• How do I optimize the performance of the AD1955ARSZRL in a noisy environment?
  To optimize performance in a noisy environment, use proper PCB layout techniques, such as separating analog and digital grounds, using decoupling capacitors, and shielding the device from electromagnetic interference (EMI). Additionally, consider using a low-pass filter or a ferrite bead to filter out high-frequency noise.
• What is the maximum clock frequency that the AD1955ARSZRL can support?
  The AD1955ARSZRL can support clock frequencies up to 192 kHz. However, the maximum clock frequency may vary depending on the specific application and system requirements.
• How do I configure the AD1955ARSZRL for differential or single-ended input modes?
  The AD1955ARSZRL can be configured for differential or single-ended input modes by setting the appropriate pins high or low. For differential input mode, tie the INMODE pin high, and for single-ended input mode, tie the INMODE pin low.
• What is the recommended layout and routing for the AD1955ARSZRL's analog and digital signals?
  To minimize noise and ensure optimal performance, keep analog and digital signals separate, use short and direct traces, and avoid crossing analog and digital signals. Additionally, use a solid ground plane and decoupling capacitors to reduce noise and electromagnetic interference.
