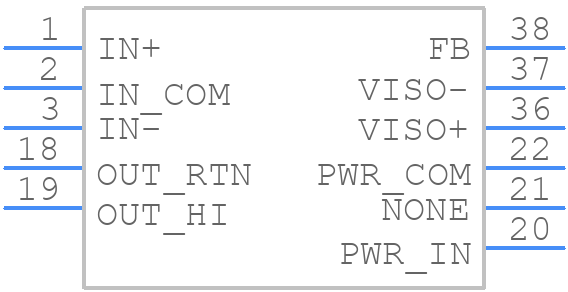

AD203SN - Analog Devices

AD203SN Details

• Manufacturer Part Number:

  AD203SN

• Source Url Status Check Date:

  2013-05-01 14:56:08.989

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

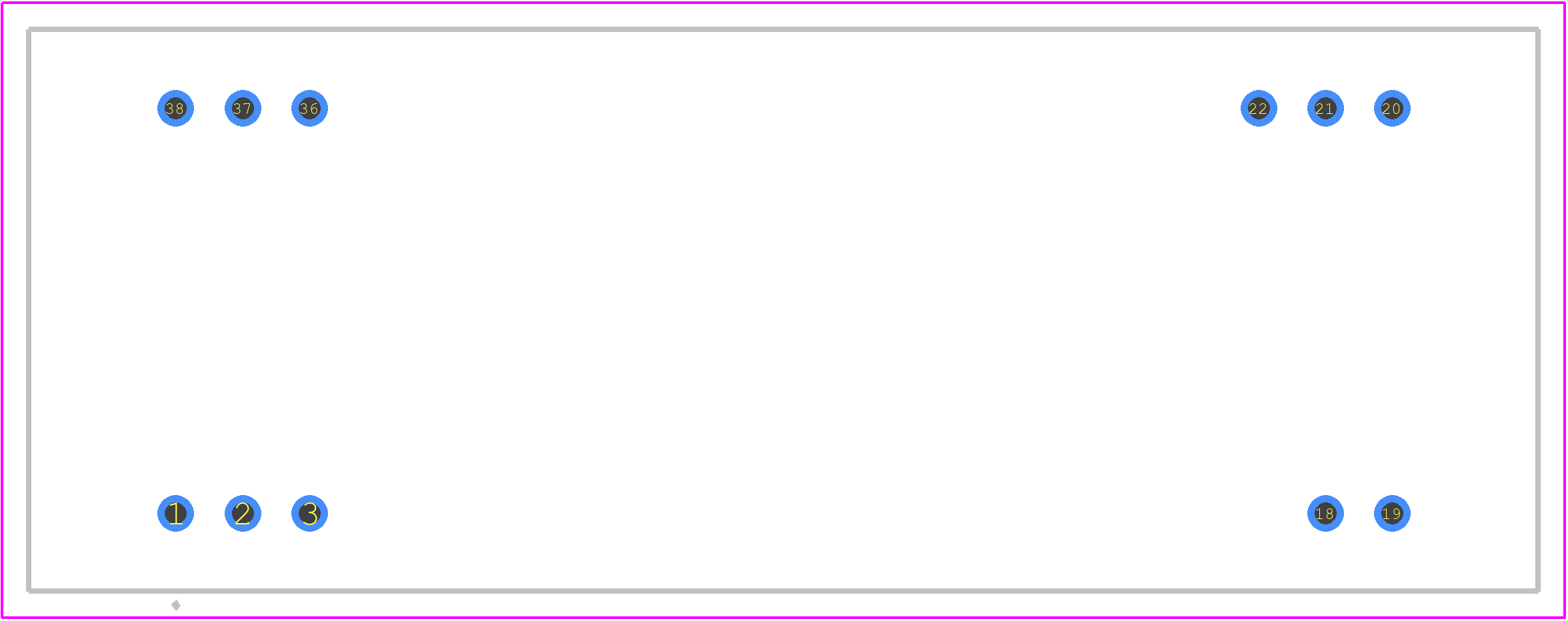

• Package Description:

  56.60 X 21.10 MM, 16.50 MM HEIGHT, STAGGERED, PLASTIC, DIP-38/11

• Pin Count:

  11

• Manufacturer Package Code:

  N-11

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Amplifier Type:

  ISOLATION AMPLIFIER

• Bandwidth (3dB)-Nom:

  0.01 MHz

• Common Mode Voltage-Max:

  1500 V

• Isolation Voltage-Min:

  1500 V

• JESD-30 Code:

  R-PDIP-T11

• JESD-609 Code:

  e0

• Length:

  57.2 mm

• Number of Functions:

  1

• Number of Terminals:

  11

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP11/38,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• Screening Level:

  MIL-STD-883

• Seated Height-Max:

  16.5 mm

• Supply Current-Max:

  20 mA

• Supply Voltage-Nom (Vsup):

  15 V

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  MILITARY

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Voltage Gain-Max:

  100

• Voltage Gain-Min:

  1

• Width:

  15.24 mm
