AD204KN - Analog Devices

Description: Isolation Amplifier 2 Circuit 11-PDIP, 2 mA, 13.5 V to 16.5 V, -40°C ~ 85°C

Download AD204KN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

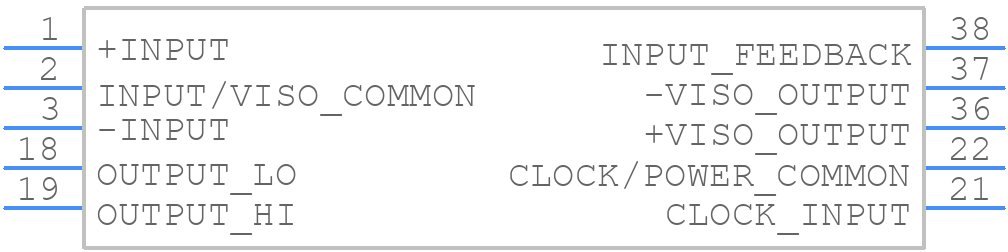

AD204KN - Analog Devices - PCB symbol
click to zoom
PCB Footprints

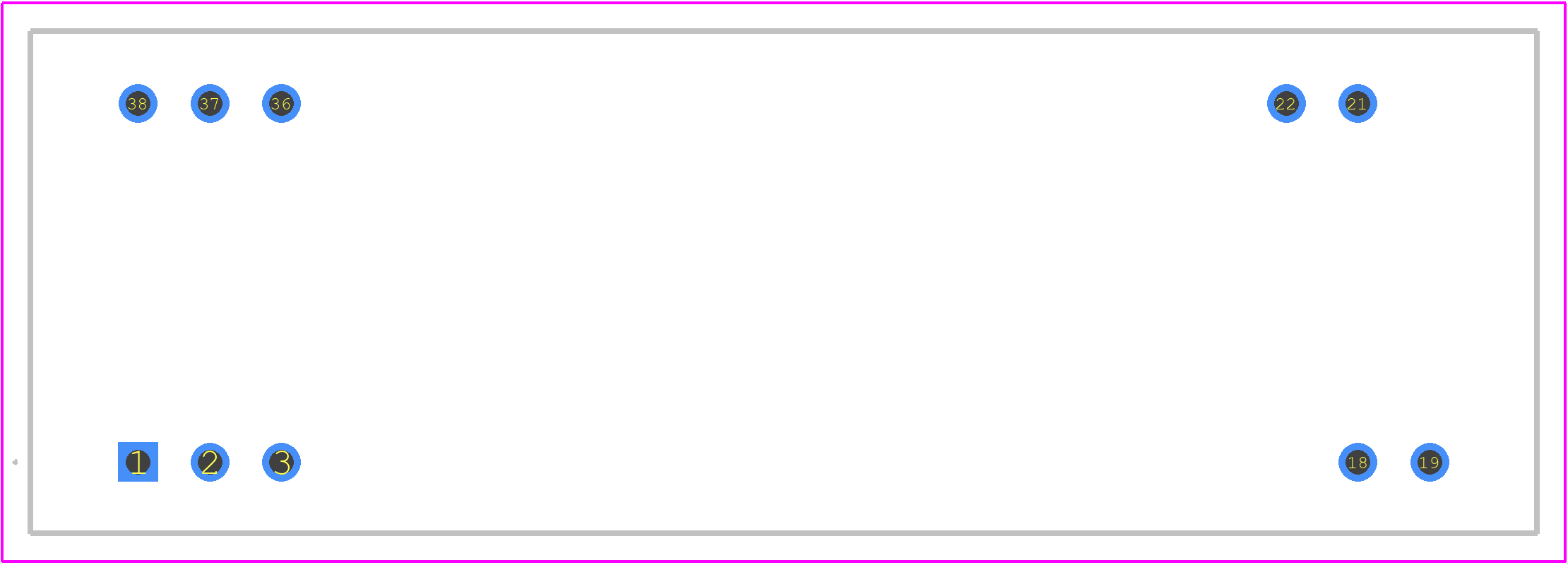

AD204KN - Analog Devices PCB footprint - Other - Other - DIP-38
click to zoom
3D Models
AD204KN - Analog Devices - 3D model - Other - DIP-38
click to zoom

AD204KN Details

  • Manufacturer Part Number:

    AD204KN

  • Source Url Status Check Date:

    2013-05-01 14:56:09.001

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    MODULE

  • Package Description:

    DIP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    N-10

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Bandwidth (3dB)-Nom:

    5 MHz

  • Common Mode Voltage-Max:

    1414.2271 V

  • Isolation Voltage-Min:

    1500 V

  • JESD-30 Code:

    R-XDMA-T10

  • Length:

    53.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP11/38,.5

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    8.9 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Voltage Gain-Max:

    100

  • Voltage Gain-Min:

    1

  • Width:

    17.8 mm

AD204KN Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VEE, and then the analog input signal. This sequence helps prevent latch-up and ensures proper operation.
  • To minimize noise and interference, keep the analog and digital grounds separate, use a solid ground plane, and keep the input and output traces short and away from each other. Also, use a low-pass filter on the power supply lines and decouple the power supply with capacitors.
  • The maximum allowable input voltage for the AD204KN is ±VCC (or ±VEE) to prevent damage to the device. Exceeding this limit can cause permanent damage or affect the device's performance.
  • The AD204KN has a typical offset voltage of 1mV. To handle this, use a voltage reference or an offset nulling circuit to adjust the output voltage. You can also use a chopper-stabilized amplifier or an auto-zero amplifier to reduce the offset voltage.
  • The recommended operating temperature range for the AD204KN is -40°C to +85°C. Operating the device outside this range can affect its performance, reliability, and lifespan.
