AD22100ARZ - Analog Devices

Description: AD22100ARZ, Temperature Sensor ±1°C 4 to 6.5V 8-Pin SOIC

Download AD22100ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

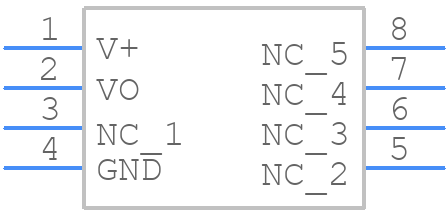

Symbol
AD22100ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD22100ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
AD22100ARZ - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

AD22100ARZ Details

  • Manufacturer Part Number:

    AD22100ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    2 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.55 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.65 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    3.28 V

  • Output Voltage-Min:

    0.47 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT

  • Supply Voltage-Max:

    6.5 V

  • Supply Voltage-Min:

    4 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

AD22100ARZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a low-ESR capacitor for decoupling and place it close to the device.
  • Ensure good thermal contact between the device and the heat source. Use a thermally conductive adhesive or thermal tape to attach the device to the heat source. Avoid air gaps and ensure the device is not exposed to air currents.
  • The AD22100ARZ is rated for operation from -40°C to +150°C. However, the accuracy of the temperature measurement may degrade at extreme temperatures. Consult the datasheet for specific accuracy specifications.
  • Yes, the AD22100ARZ is designed to operate in high-vibration environments. However, ensure the device is properly mounted and secured to prevent mechanical stress and damage.
  • Calibration is not required for the AD22100ARZ. The device is factory-calibrated and does not require any user calibration. However, ensure the device is operated within the specified temperature range and power supply voltage for optimal performance.
