AD22103KRZ - Analog Devices

Description: AD22103KRZ, Temperature Sensor ±0.75°C 2.7 to 3.6V 8-Pin SOIC

Download AD22103KRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

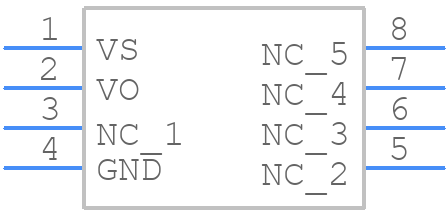

Symbol
AD22103KRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD22103KRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD22103KRZ
click to zoom
3D Models
AD22103KRZ - Analog Devices - 3D model - Small Outline Packages - AD22103KRZ
click to zoom

AD22103KRZ Details

  • Manufacturer Part Number:

    AD22103KRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    2.5 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.55 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.6 mA

  • Operating Temperature-Max:

    100 °C

  • Output Voltage-Max:

    0.95 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,ANALOG,VOLTAGE OUTPUT

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

AD22103KRZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD22103KRZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and other components.
  • To ensure accurate temperature measurement, it's essential to calibrate the device, use a thermocouple with a high accuracy rating, and ensure good thermal contact between the thermocouple and the device being measured.
  • The maximum cable length for the thermocouple connection to the AD22103KRZ depends on the type of thermocouple and the noise environment. As a general rule, keep the cable length as short as possible (less than 10 feet) to minimize noise pickup and ensure accurate measurements.
  • No, the AD22103KRZ is specifically designed to work with thermocouples and is not compatible with thermistors or RTDs. If you need to measure temperature with a thermistor or RTD, you'll need a different device.
  • To minimize EMI, use a shielded cable for the thermocouple connection, keep the device away from high-frequency sources, and use a metal enclosure to shield the device and surrounding circuitry.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD22103KRZ Overview

Use the download button to access the AD22103KRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD221, or try a keyword search, such as Temperature Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
