![AD22105ARZ - Analog Devices - 3D model - Small Outline Packages - . 8-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-8)](https://media.componentsearchengine.com/images/available.svg?v=0.74.3)
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for AD22105ARZ
- Part Number AD22105ARZ
- Manufacturer Analog Devices
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - . 8-Lead Standard Small Outline Package [SOIC_N] Narrow Body (R-8)
- Released Date Mar 10, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
AD22105ARZ Details
-
Manufacturer Part Number:
AD22105ARZ
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
SOIC-8
-
Pin Count:
8
-
Manufacturer Package Code:
R-8
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
AD22105ARZ Frequently Asked Questions (FAQs)
-
A good PCB layout for the AD22105ARZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and other components.
-
To ensure accurate temperature measurement, it's essential to calibrate the device, use a thermocouple with a high accuracy rating, and ensure good thermal contact between the thermocouple and the device being measured.
-
The maximum cable length for the thermocouple connection to the AD22105ARZ depends on the type of thermocouple and the noise environment. As a general rule, keep the cable length as short as possible (less than 10 feet) to minimize noise pickup and ensure accurate measurements.
-
No, the AD22105ARZ is specifically designed to work with thermocouples. It is not compatible with thermistors or RTD sensors, which require different signal conditioning and amplification.
-
To minimize EMI, use a shielded cable for the thermocouple connection, keep the device away from high-frequency sources, and use a metal enclosure for the device and associated circuitry.
Trust Checks
Community Provided
System Verified
Community Approved
AD22105ARZ Overview

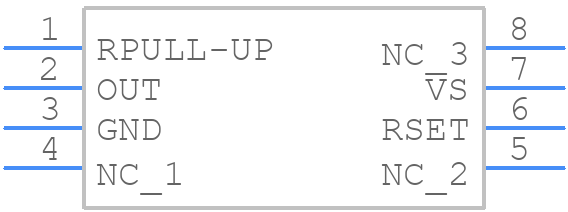

Use the download button to access the AD22105ARZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD221,
or try a keyword search, such as Temperature Sensors
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
