AD22151YRZ - Analog Devices

Description: AD22151YRZ, Hall Effect Sensor 8-Pin SOIC N

Download AD22151YRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

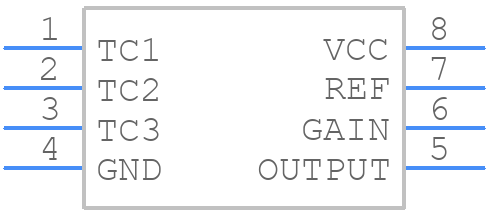

Symbol
AD22151YRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD22151YRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD22151YRZ
click to zoom
3D Models
AD22151YRZ - Analog Devices - 3D model - Small Outline Packages - AD22151YRZ
click to zoom

AD22151YRZ Details

  • Manufacturer Part Number:

    AD22151YRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MS-012AA, SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.37 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Linearity (%):

    0.1 %

  • Magnetic Field Range-Max:

    60 mT

  • Magnetic Field Range-Min:

    -60 mT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SINGLE-ENDED

  • Output Circuit Type:

    SINGLE-ENDED

  • Output Range:

    0.45-5.40V

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensitivity (mV/G):

    0.4 mV/G

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    6 V

  • Supply Voltage-Min:

    4.5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

AD22151YRZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD22151YRZ involves keeping the input and output traces separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and interference.
  • To ensure accurate temperature measurement, calibrate the AD22151YRZ using a thermocouple simulator or a precision temperature source, and ensure that the thermocouple is properly connected and insulated.
  • The maximum cable length for the AD22151YRZ's thermocouple input depends on the type of thermocouple and the noise environment, but a general guideline is to keep the cable length under 10 feet (3 meters) to minimize noise and interference.
  • The AD22151YRZ is specifically designed for use with thermocouples, but it can be used with other types of temperature sensors with proper signal conditioning and calibration.
  • To handle EMI, use a shielded cable for the thermocouple input, keep the AD22151YRZ away from high-frequency sources, and use a metal enclosure to shield the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD22151YRZ Overview

Use the download button to access the AD22151YRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD221, or try a keyword search, such as Magnetic Field Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Suggested Parts

If you searched for AD22151YRZ, you might also be interested in these parts:
Part Number
AD7817BRZ
KP215F1701
MAX6633MSA+
MP3H6115AC6T1
MPL3115A2
MPXA6115AC6U
DS1722S+
FXAS21002CQR1
DS1722U+

Parts related to AD22151YRZ

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

AD22151YRZ Alternates

Showing results

Image Part Number Model
Part Image AD22151YRZ-RL Analog Devices Inc

Hall Effect Sensor, -60mT Min, 60mT Max, 0.45-5.40V, Bipolar, Plastic/epoxy, Rectangular, 8 Pin, Surface Mount
Part Image AD22151YR Analog Devices Inc

Hall Effect Sensor, -60mT Min, 60mT Max, 0.45-5.40V, Bipolar, Plastic/epoxy, Rectangular, 8 Pin, Surface Mount
