AD2S1205WSTZ - Analog Devices

Description: Data Acquisition ADCs/DACs - Specialized

Download AD2S1205WSTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

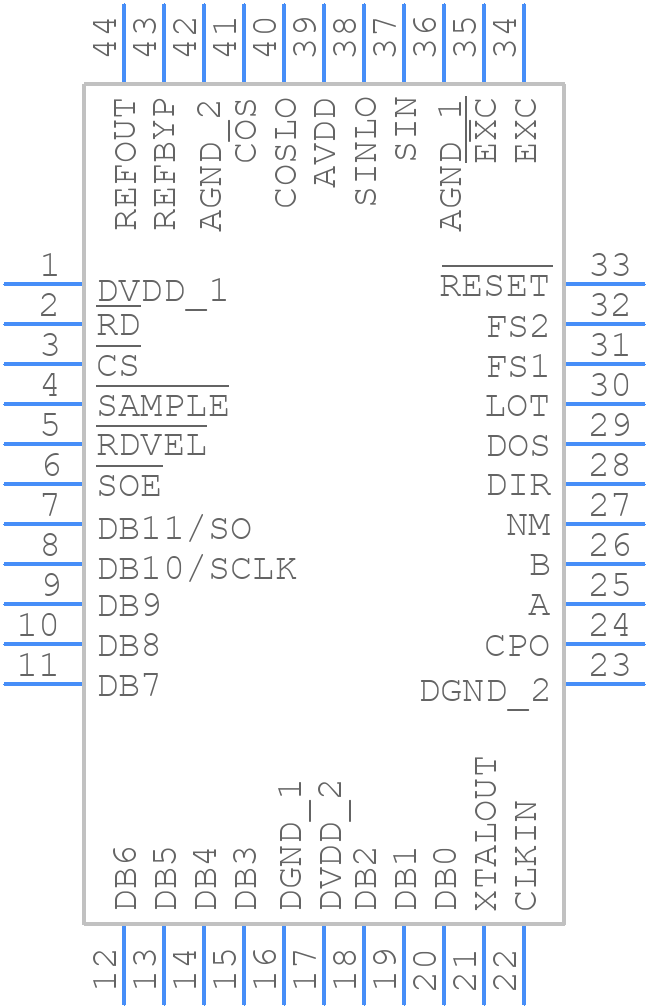

Symbol
AD2S1205WSTZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD2S1205WSTZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - ST-44-1 (LQFP)
click to zoom
3D Models
AD2S1205WSTZ - Analog Devices - 3D model - Quad Flat Packages - ST-44-1 (LQFP)
click to zoom

AD2S1205WSTZ Details

  • Manufacturer Part Number:

    AD2S1205WSTZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    LEAD FREE, MS-026BCB, LQFP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    ST-44-1

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    BUILT-IN-TEST

  • Analog Input Voltage-Max:

    2.3 V

  • Angular Accuracy-Max:

    2 arc min

  • Converter Type:

    SYNCHRO OR RESOLVER TO DIGITAL CONVERTER

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP44,.47SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Signal/Output Frequency:

    10000 Hz

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Tracking Rate-Max:

    1250 rps

  • Width:

    10 mm

AD2S1205WSTZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply and keep the power traces away from the analog signals.
  • Calibration involves adjusting the internal gain and offset of the device to match the specific requirements of your application. Refer to the datasheet for the calibration procedure, and use the ADI-provided calibration software or a third-party calibration tool.
  • The maximum clock frequency for the AD2S1205WSTZ is 20 MHz. However, the actual clock frequency used may be limited by the specific application and the required resolution and accuracy.
  • Yes, the AD2S1205WSTZ can be used in a multi-channel application. Use multiple devices, each connected to a separate channel, and synchronize the clock signals to ensure simultaneous sampling. Alternatively, use a single device with a multiplexer to switch between channels.
  • Power up the device in the following sequence: VDD, AVDD, and then CLKIN. Ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD2S1205WSTZ Overview

Use the download button to access the AD2S1205WSTZ schematic symbol, PCB footprint, and 3D model.
