AD2S1210ASTZ-RL7 - Analog Devices

Description: Variable Resolution, 10-Bit to 16-Bit R/D Converter with Reference Oscillator

Download AD2S1210ASTZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

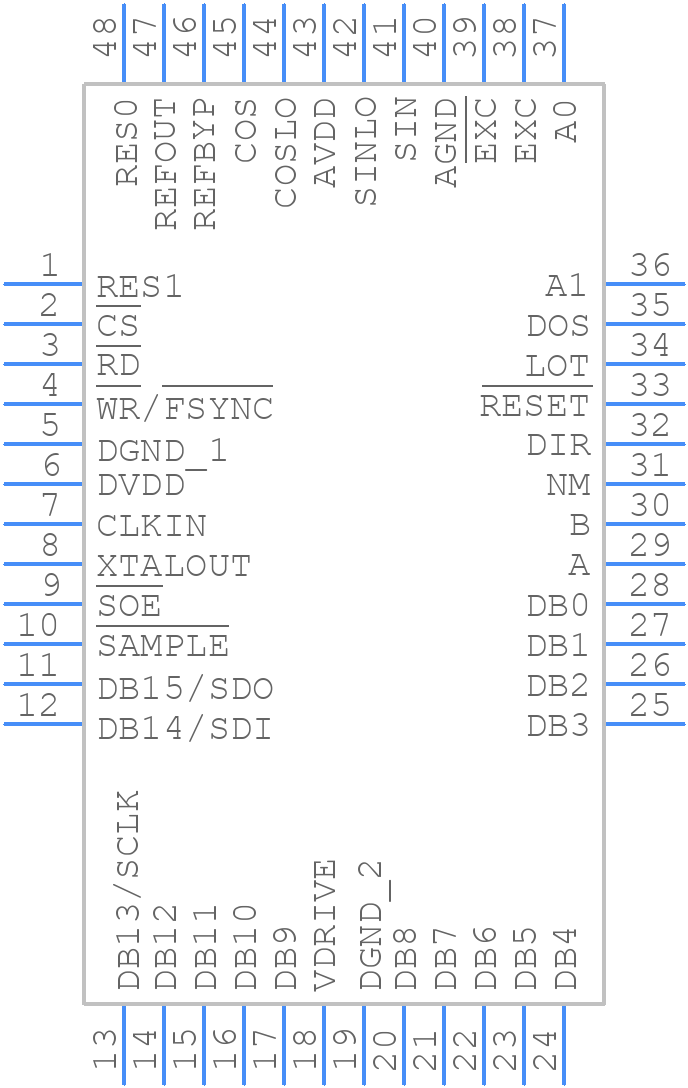

AD2S1210ASTZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD2S1210ASTZ-RL7 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - AD2S1210ASTZ-RL7
click to zoom
3D Models
AD2S1210ASTZ-RL7 - Analog Devices - 3D model - Quad Flat Packages - AD2S1210ASTZ-RL7
click to zoom

AD2S1210ASTZ-RL7 Details

  • Manufacturer Part Number:

    AD2S1210ASTZ-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:09.482

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    4 V

  • Angular Accuracy-Max:

    10 arc min

  • Converter Type:

    SYNCHRO OR RESOLVER TO DIGITAL CONVERTER

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    TQFP48,.3SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Signal/Output Frequency:

    20000 Hz

  • Supply Current-Max:

    12 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Tracking Rate-Max:

    156.25 rps

  • Width:

    7 mm

AD2S1210ASTZ-RL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply and keep the power supply traces away from the analog signals.
  • Calibration involves adjusting the internal gain and offset of the device to match the specific requirements of your application. Refer to the datasheet for the calibration procedure, and use the ADI-provided calibration software or a third-party calibration tool.
  • Power up the device in the following sequence: VDD, AVDD, and then DVDD. Ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal.
  • Use a heat sink or a thermal pad to dissipate heat. Ensure good airflow around the device, and consider using a thermal interface material to improve heat transfer. Operate the device within the recommended temperature range to prevent overheating.
  • Use a shielded enclosure, and keep the device away from sources of electromagnetic radiation. Use a common-mode choke or a ferrite bead to filter the power supply lines, and consider using a shielded cable for the analog signals.
