AD2S1210BSTZ - Analog Devices

Description: Variable Resolution, 10-Bit to 16-Bit R/D Converter with Reference Oscillator

Download AD2S1210BSTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

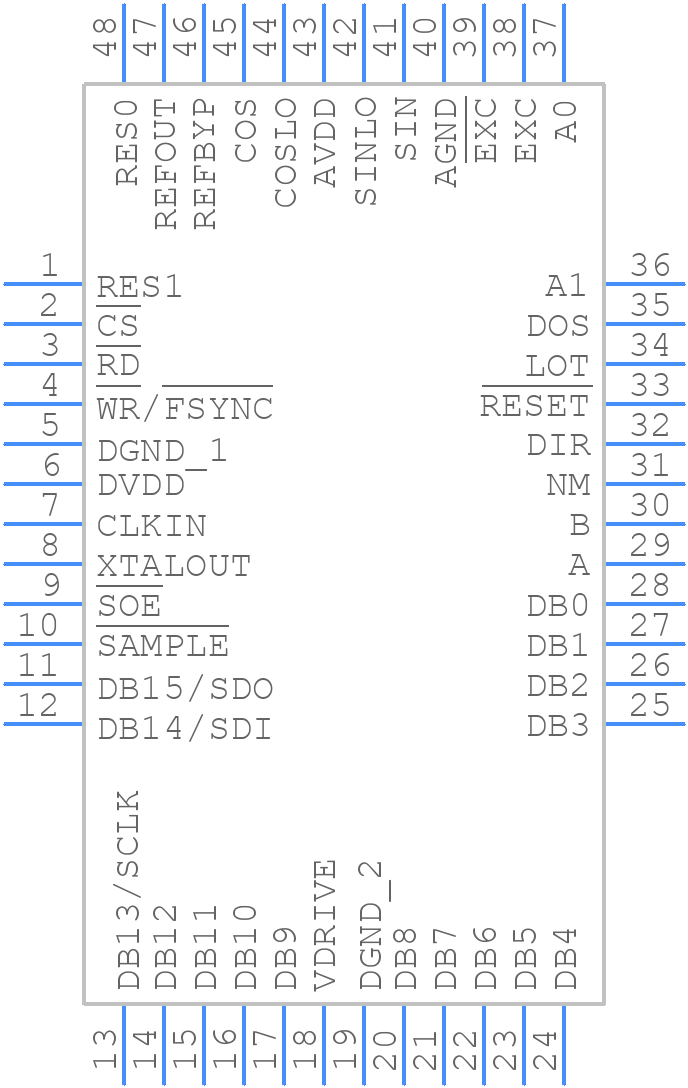

AD2S1210BSTZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD2S1210BSTZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-Lead Low Profile Quad Flat Package [LQFP] (ST-48)
click to zoom
3D Models
AD2S1210BSTZ - Analog Devices - 3D model - Quad Flat Packages - 48-Lead Low Profile Quad Flat Package [LQFP] (ST-48)
click to zoom

AD2S1210BSTZ Details

  • Manufacturer Part Number:

    AD2S1210BSTZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.3 V

  • Angular Accuracy-Max:

    2 arc min

  • Converter Type:

    SYNCHRO OR RESOLVER TO DIGITAL CONVERTER

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Signal/Output Frequency:

    10000 Hz

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Tracking Rate-Max:

    18 rps

  • Width:

    7 mm

AD2S1210BSTZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD before applying VCC. This ensures that the internal voltage regulators are powered up correctly.
  • The AD2S1210BSTZ can be configured for a specific resolver application by setting the appropriate values for the gain, offset, and tracking mode through the SPI interface. Refer to the application note AN-1111 for more information.
  • The AD2S1210BSTZ can handle resolver input frequencies up to 20 kHz. However, the maximum frequency may vary depending on the specific application and resolver characteristics.
  • To troubleshoot issues with the AD2S1210BSTZ, check the power supply voltages, ensure that the resolver signal is within the specified amplitude and frequency range, and verify that the SPI interface is properly configured. Also, check the error flags and status registers for any error indications.
  • Yes, the AD2S1210BSTZ can be used with resolvers that have a different number of poles. However, the device may require additional configuration and calibration to accommodate the specific resolver characteristics.
