AD2S1210DSTZ - Analog Devices

Description: Variable Resolution, 10-Bit to 16-Bit R/D Converter with Reference Oscillator

Download AD2S1210DSTZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

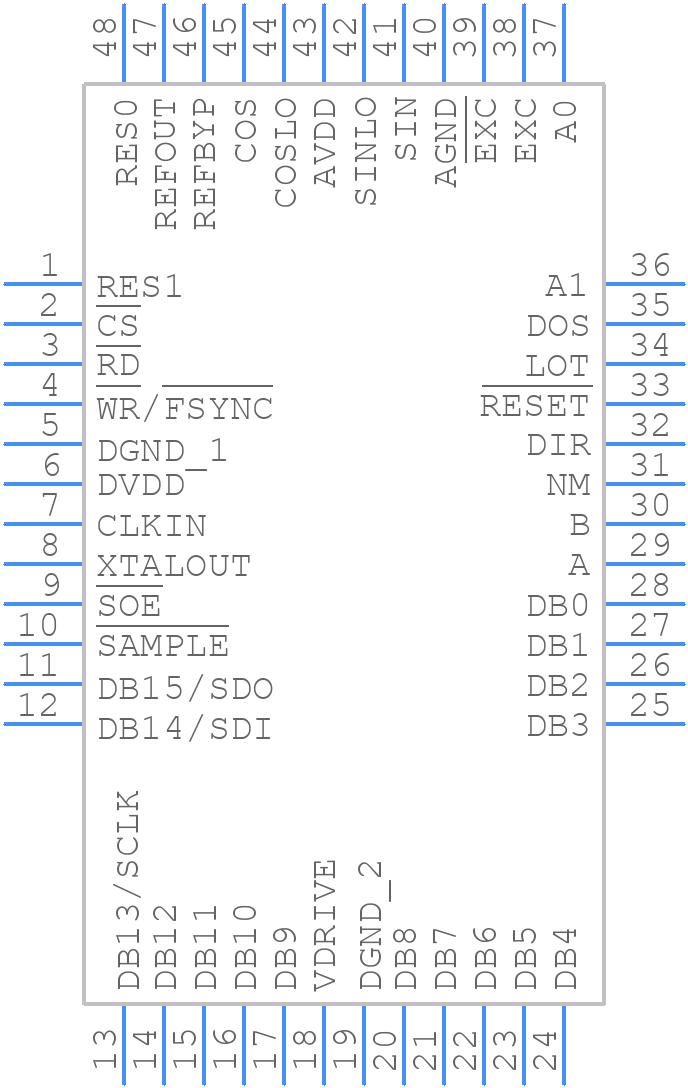

Symbol
AD2S1210DSTZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD2S1210DSTZ - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-Lead Low Profile Quad Flat Package
click to zoom
3D Models
AD2S1210DSTZ - Analog Devices - 3D model - Quad Flat Packages - 48-Lead Low Profile Quad Flat Package
click to zoom

AD2S1210DSTZ Details

  • Manufacturer Part Number:

    AD2S1210DSTZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    2.3 V

  • Angular Accuracy-Max:

    4 arc min

  • Converter Type:

    SYNCHRO OR RESOLVER TO DIGITAL CONVERTER

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Signal/Output Frequency:

    1000 Hz

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Tracking Rate-Max:

    18 rps

  • Width:

    7 mm

AD2S1210DSTZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD first, followed by VCC, and then the digital inputs. This ensures proper device operation and prevents latch-up.
  • To minimize noise and interference, keep the analog and digital grounds separate, use a solid ground plane, and keep the signal traces short and away from noise sources. Also, use a low-pass filter on the input signals to reduce high-frequency noise.
  • The maximum clock frequency for the AD2S1210DSTZ is 20 MHz. Exceeding this frequency may result in incorrect operation or damage to the device.
  • The AD2S1210DSTZ outputs 16-bit data in a serial format. The microcontroller should be configured to receive serial data and convert it to a usable format. The data can be processed using a digital signal processing (DSP) algorithm or a fast Fourier transform (FFT) to extract the desired information.
  • The recommended operating temperature range for the AD2S1210DSTZ is -40°C to +125°C. Operating the device outside this range may affect its performance and reliability.
