AD2S1210SST-EP-RL7 - Analog Devices

Description: ANALOG DEVICES - AD2S1210SST-EP-RL7 - ADC, 16BIT, LQFP-48

Download AD2S1210SST-EP-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

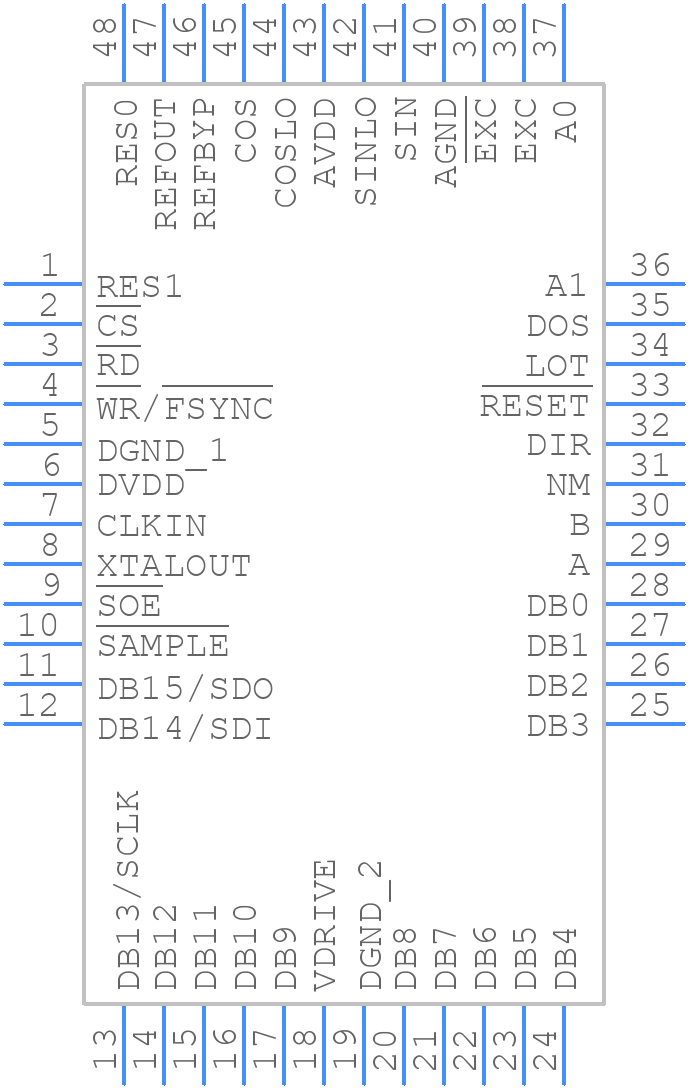

Symbol
AD2S1210SST-EP-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD2S1210SST-EP-RL7 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - ST-48 (LQFP)
click to zoom
3D Models
AD2S1210SST-EP-RL7 - Analog Devices - 3D model - Quad Flat Packages - ST-48 (LQFP)
click to zoom

AD2S1210SST-EP-RL7 Details

  • Manufacturer Part Number:

    AD2S1210SST-EP-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:09.496

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • HTS Code:

    8542.39.00.50

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    2.3 V

  • Angular Accuracy-Max:

    4 arc min

  • Converter Type:

    SYNCHRO OR RESOLVER TO DIGITAL CONVERTER

  • JESD-30 Code:

    S-XQFP-G48

  • JESD-609 Code:

    e0

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Signal/Output Frequency:

    2600 Hz

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Tracking Rate-Max:

    18 rps

  • Width:

    7 mm

AD2S1210SST-EP-RL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply and keep the power supply traces away from the analog signals.
  • Calibration involves adjusting the internal gain and offset of the device to match the specific requirements of your application. Refer to the datasheet for the calibration procedure, and use the ADI-provided calibration software or a third-party calibration tool.
  • Power up the device in the following sequence: VDD, AVDD, and then DVDD. Ensure that the power supplies are stable and within the recommended voltage range before applying the clock signal.
  • Use a heat sink or a thermal pad to dissipate heat. Ensure good airflow around the device, and consider using a thermal interface material to improve heat transfer. Follow the recommended thermal design guidelines in the datasheet.
  • Use ESD protection devices such as TVS diodes or ESD arrays on the input and output pins. Follow proper handling and storage procedures to prevent ESD damage. Use an ESD-protected workstation and wear an ESD strap when handling the device.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD2S1210SST-EP-RL7 Overview

Use the download button to access the AD2S1210SST-EP-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD2S1, or try a keyword search, such as Position Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
