AD2S1210SSTZ-EPRL7 - Analog Devices

Description: Variable Resolution, 10-Bit to 16-Bit R/D Converter with Reference Oscillator

Download AD2S1210SSTZ-EPRL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

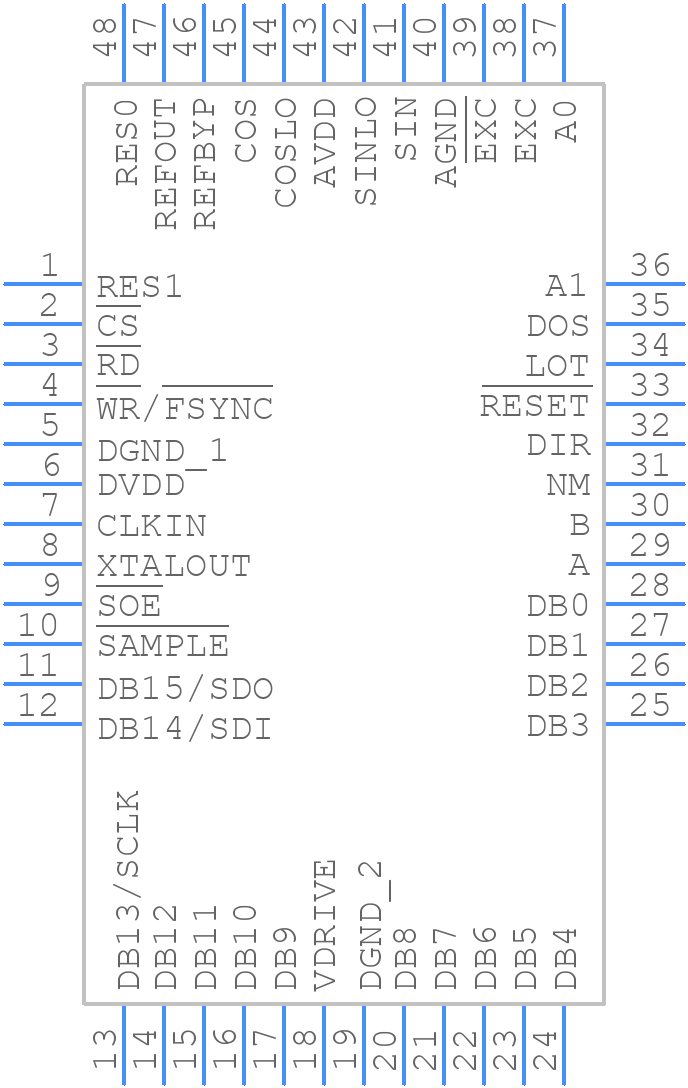

AD2S1210SSTZ-EPRL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD2S1210SSTZ-EPRL7 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-Lead Low Profile Quad Flat Package [LQFP] (ST-48)-*
click to zoom
3D Models
AD2S1210SSTZ-EPRL7 - Analog Devices - 3D model - Quad Flat Packages - 48-Lead Low Profile Quad Flat Package [LQFP] (ST-48)-*
click to zoom

AD2S1210SSTZ-EPRL7 Details

  • Manufacturer Part Number:

    AD2S1210SSTZ-EPRL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    ST-48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-05-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    4 V

  • Angular Accuracy-Max:

    7 arc min

  • Converter Type:

    SYNCHRO OR RESOLVER TO DIGITAL CONVERTER

  • JESD-30 Code:

    S-XQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Signal/Output Frequency:

    20000 Hz

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Tracking Rate-Max:

    3125 rps

  • Width:

    7 mm

AD2S1210SSTZ-EPRL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD2S1210SSTZ-EPRL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, which involves applying a known input signal and adjusting the internal calibration registers to achieve the desired output. Additionally, consider using the ADI-provided calibration software or consulting with an Analog Devices engineer for customized calibration support.
  • The AD2S1210SSTZ-EPRL7 has a maximum junction temperature of 150°C. To ensure reliable operation, ensure good airflow around the device, use a heat sink if necessary, and avoid overheating the device. Additionally, consider using thermal interface materials and following proper PCB design guidelines to minimize thermal resistance.
  • To troubleshoot issues with the AD2S1210SSTZ-EPRL7, start by verifying the power supply and clock signals, then check the input signals and calibration settings. Use the device's built-in diagnostic features, such as the fault detection registers, to identify potential issues. Consult the datasheet and application notes for guidance on troubleshooting specific problems.
  • The AD2S1210SSTZ-EPRL7 is designed to meet the requirements of space and high-reliability applications, with features such as radiation-hardened design, latch-up immunity, and single-event effect (SEE) mitigation. The device is also qualified to various standards, including MIL-PRF-38535 and NASA's EEE-INST-002.
