AD2S1210WDSTZ - Analog Devices

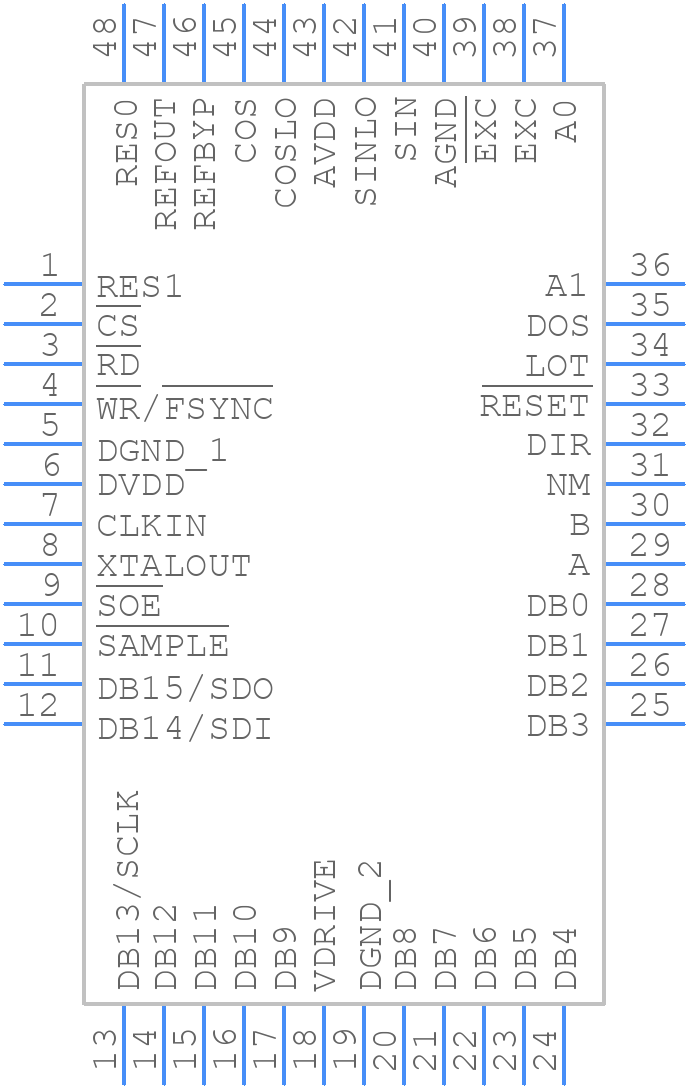

AD2S1210WDSTZ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for the AD2S1210WDSTZ to minimize noise and ensure optimal performance?
  A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star topology for the power supply and keep the power traces away from the analog signals.
• How do I calibrate the AD2S1210WDSTZ to achieve optimal performance?
  Calibration involves adjusting the internal DACs to match the sensor's output. Use the on-chip calibration registers to adjust the gain and offset. Refer to the datasheet for the calibration procedure and use the ADI's evaluation board software for guidance.
• What is the maximum frequency of the SPI interface, and how do I ensure reliable communication?
  The maximum frequency of the SPI interface is 20 MHz. To ensure reliable communication, use a clock frequency of 10 MHz or less, and ensure that the SPI clock signal is clean and free of noise. Use a series resistor (e.g., 22 ohms) on the SCK line to reduce ringing.
• How do I handle the internal voltage regulator's power-up and power-down sequencing?
  The internal voltage regulator requires a specific power-up and power-down sequencing to prevent latch-up. Ensure that the AVDD and DVDD supplies are powered up and down simultaneously, and that the AVDD supply is powered up before the DVDD supply.
• What is the recommended decoupling capacitor configuration for the AD2S1210WDSTZ?
  Use a 10 uF ceramic capacitor in parallel with a 100 nF ceramic capacitor, placed as close as possible to the AVDD and DVDD pins. This configuration helps to filter out noise and ensures stable power supply.
