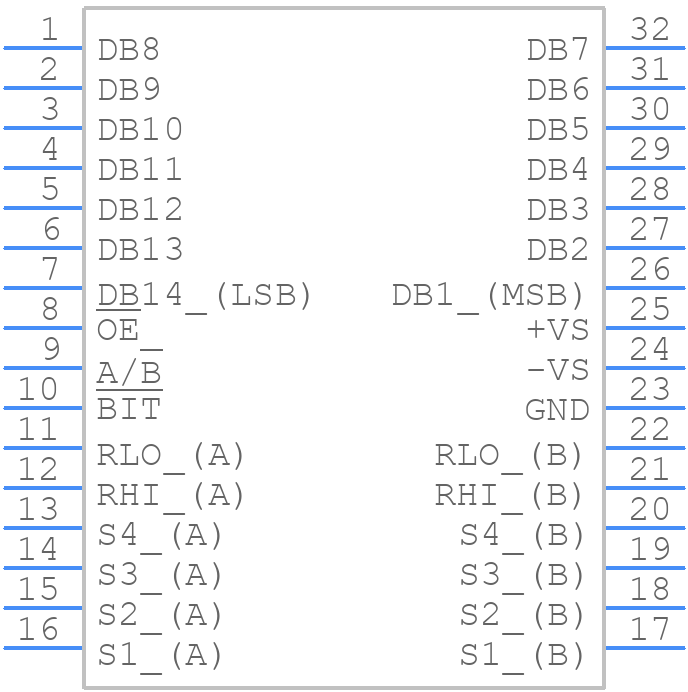

AD2S44-TM18B Details

• Manufacturer Part Number:

  AD2S44-TM18B

• Source Url Status Check Date:

  2013-05-01 14:56:09.519

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  Yes

• Rohs Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

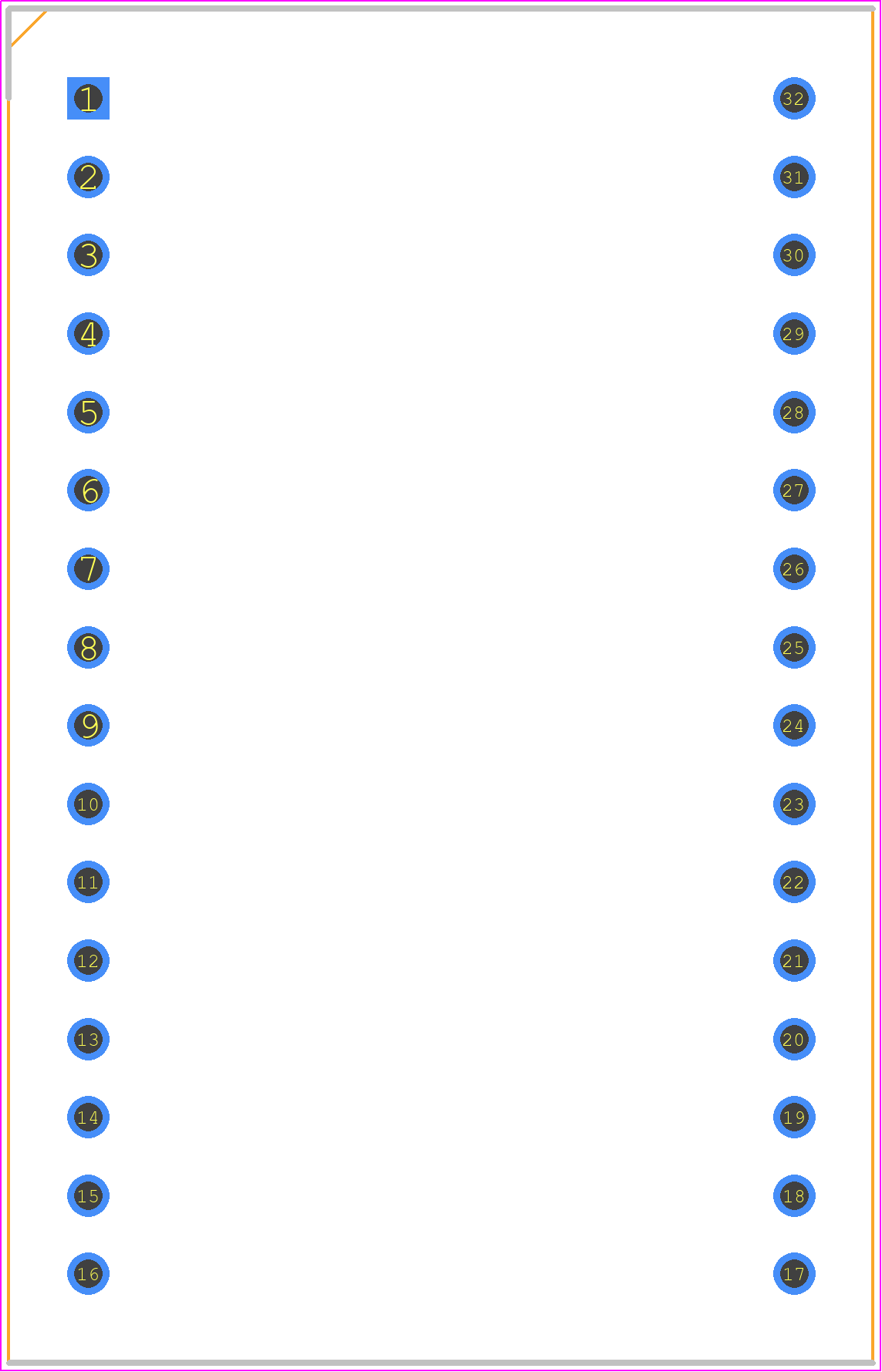

  DIP, DIP32,.9

• Pin Count:

  32

• Manufacturer Package Code:

  DH-32E

• Reach Compliance Code:

  Not Compliant

• Country Of Origin:

  UK

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Additional Feature:

  TWO CHANNEL; BUILT-IN-TEST; 26V REFERENCE INPUT

• Analog Input Voltage-Max:

  11.8 V

• Angular Accuracy-Max:

  4 arc min

• Converter Type:

  SYNCHRO OR RESOLVER TO DIGITAL CONVERTER

• JESD-30 Code:

  R-MDIP-T32

• Length:

  44.45 mm

• Negative Supply Voltage-Max:

  -15.75 V

• Negative Supply Voltage-Min:

  -14.25 V

• Negative Supply Voltage-Nom:

  -15 V

• Number of Bits:

  14

• Number of Functions:

  1

• Number of Terminals:

  32

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  METAL

• Package Code:

  DIP

• Package Equivalence Code:

  DIP32,.9

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• Screening Level:

  MIL-STD-883

• Seated Height-Max:

  5.72 mm

• Settling Time-Max:

  75 µs

• Signal/Output Frequency:

  2600 Hz

• Supply Current-Max:

  100 mA

• Supply Voltage-Max:

  15.75 V

• Supply Voltage-Min:

  14.25 V

• Supply Voltage-Nom:

  15 V

• Surface Mount:

  NO

• Technology:

  HYBRID

• Temperature Grade:

  MILITARY

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Tracking Rate-Max:

  20 rps

• Width:

  27.69 mm
