AD2S80ATD - Analog Devices

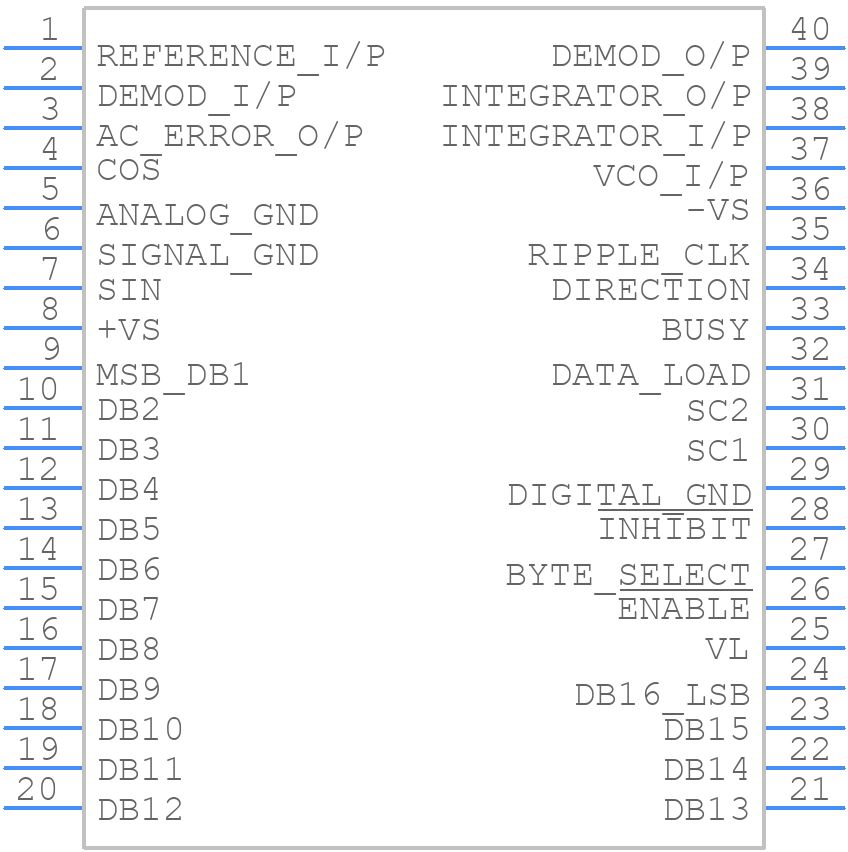

AD2S80ATD Details

• Manufacturer Part Number:

  AD2S80ATD

• Source Url Status Check Date:

  2013-05-01 14:56:09.539

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  DIP

• Package Description:

  DIP-40

• Pin Count:

  40

• Manufacturer Package Code:

  D-40-1

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Additional Feature:

  ALSO REQUIRES A 5V LOGIC SUPPLY

• Analog Input Voltage-Max:

  2.2 V

• Angular Accuracy-Max:

  4 arc min

• Converter Type:

  SYNCHRO OR RESOLVER TO DIGITAL CONVERTER

• JESD-30 Code:

  R-CDIP-T40

• Length:

  50.8 mm

• Negative Supply Voltage-Max:

  -13.2 V

• Negative Supply Voltage-Min:

  -10.8 V

• Negative Supply Voltage-Nom:

  -12 V

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  40

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP40,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.06 mm

• Signal/Output Frequency:

  20000 Hz

• Supply Voltage-Max:

  13.2 V

• Supply Voltage-Min:

  10.8 V

• Supply Voltage-Nom:

  12 V

• Surface Mount:

  NO

• Technology:

  BICMOS

• Temperature Grade:

  MILITARY

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Tracking Rate-Max:

  16.25 rps

• Width:

  15.24 mm
