AD2S81AJD - Analog Devices

AD2S81AJD Details

• Manufacturer Part Number:

  AD2S81AJD

• Source Url Status Check Date:

  2013-05-01 14:56:09.551

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Not Recommended

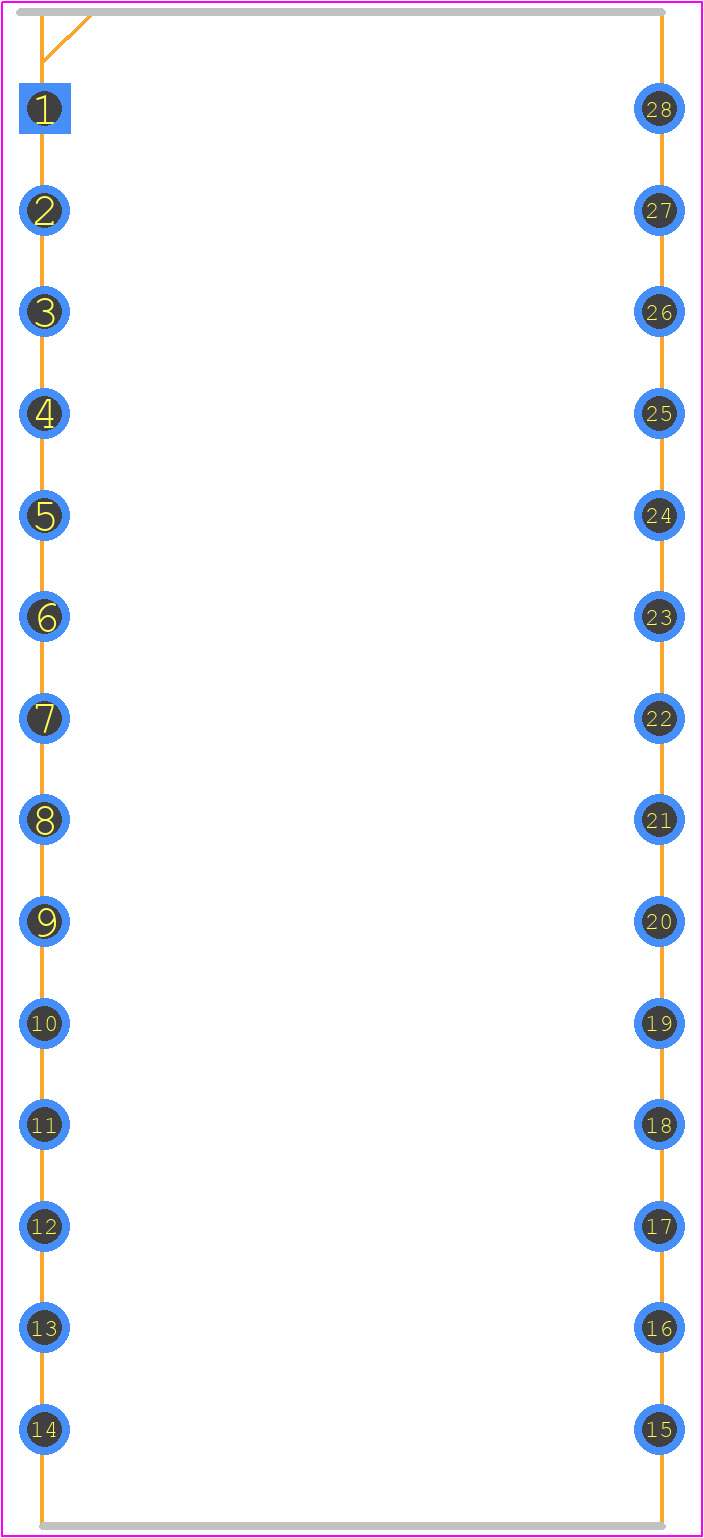

• Part Package Code:

  DIP

• Package Description:

  CERAMIC, DIP-28

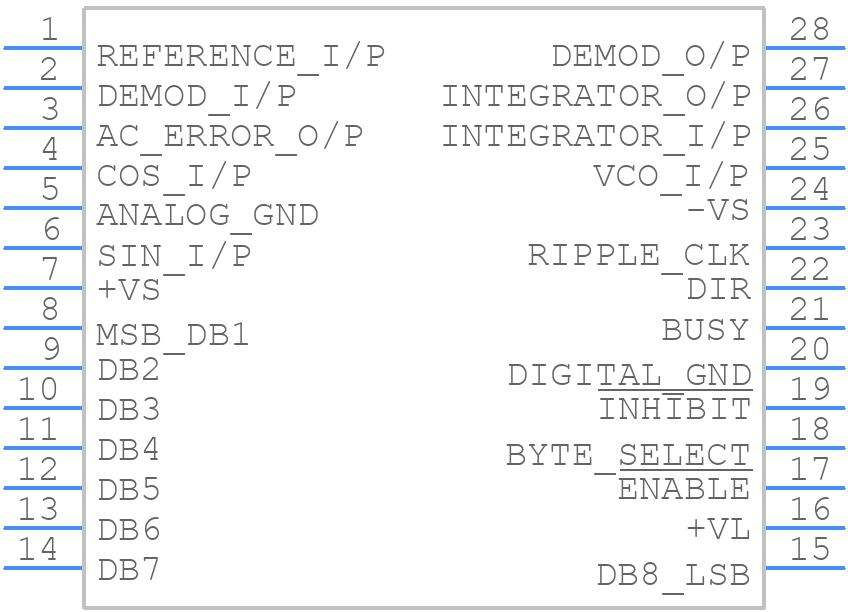

• Pin Count:

  28

• Manufacturer Package Code:

  D-28-2

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Additional Feature:

  LG-MAX

• Analog Input Voltage-Max:

  2 V

• Angular Accuracy-Max:

  30 arc min

• Converter Type:

  SYNCHRO OR RESOLVER TO DIGITAL CONVERTER

• JESD-30 Code:

  R-CDIP-T28

• JESD-609 Code:

  e0

• Length:

  37.85 mm

• Negative Supply Voltage-Max:

  -13.2 V

• Negative Supply Voltage-Min:

  -10.8 V

• Negative Supply Voltage-Nom:

  -12 V

• Number of Bits:

  12

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  CERAMIC, METAL-SEALED COFIRED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP28,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.27 mm

• Signal/Output Frequency:

  20000 Hz

• Supply Current-Max:

  30 mA

• Supply Voltage-Max:

  13.2 V

• Supply Voltage-Min:

  10.8 V

• Supply Voltage-Nom:

  12 V

• Surface Mount:

  NO

• Technology:

  BICMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Lead (Sn/Pb)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Tracking Rate-Max:

  260 rps

• Width:

  15.24 mm
