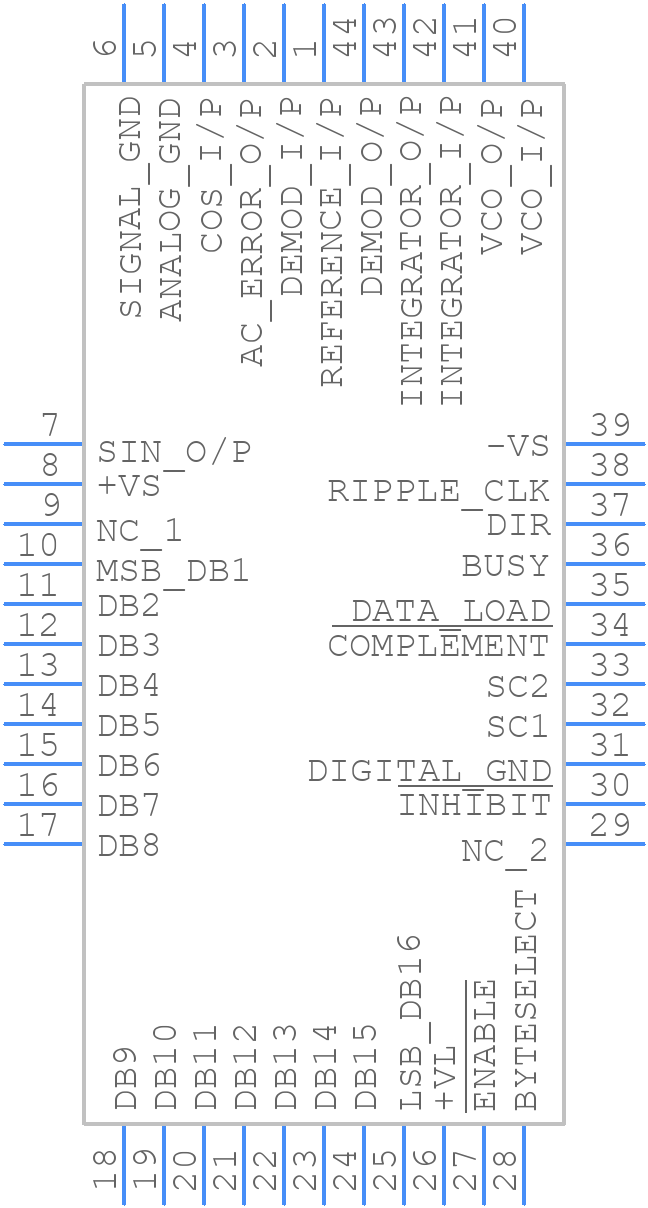

AD2S82AJPZ - Analog Devices

AD2S82AJPZ Details

• Manufacturer Part Number:

  AD2S82AJPZ

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  LCC

• Package Description:

  PLASTIC, LCC-44

• Pin Count:

  44

• Manufacturer Package Code:

  P-44A

• Country Of Origin:

  Philippines

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  3

• Analog Input Voltage-Max:

  2 V

• Angular Accuracy-Max:

  8 arc min

• Converter Type:

  SYNCHRO OR RESOLVER TO DIGITAL CONVERTER

• JESD-30 Code:

  S-PQCC-J44

• JESD-609 Code:

  e3

• Length:

  16.5862 mm

• Moisture Sensitivity Level:

  3

• Negative Supply Voltage-Max:

  -13.2 V

• Negative Supply Voltage-Min:

  -10.8 V

• Negative Supply Voltage-Nom:

  -12 V

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  44

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC44,.7SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.57 mm

• Signal/Output Frequency:

  20000 Hz

• Supply Current-Max:

  30 mA

• Supply Voltage-Max:

  13.2 V

• Supply Voltage-Min:

  10.8 V

• Supply Voltage-Nom:

  12 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Tracking Rate-Max:

  16.25 rps

• Width:

  16.5862 mm
