AD2S99APZ - Analog Devices

Description: AD2S99APZ, Voltage Controlled Oscillator, 2 to 20kHz ±5V, 20-Pin PLCC 9x9mm%0

Download AD2S99APZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

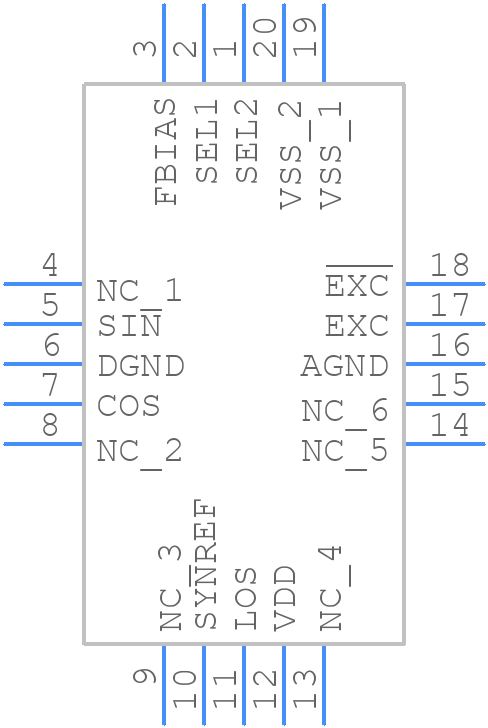

AD2S99APZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD2S99APZ - Analog Devices PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - P-20A
click to zoom
3D Models
AD2S99APZ - Analog Devices - 3D model - Plastic Leaded Chip Carrier - P-20A
click to zoom

AD2S99APZ Details

  • Manufacturer Part Number:

    AD2S99APZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QLCC

  • Package Description:

    PLASTIC, LCC-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    P-20

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    SINE

  • JESD-30 Code:

    S-PQCC-J20

  • JESD-609 Code:

    e3

  • Length:

    8.9662 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Frequency-Max:

    0.02 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.57 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Width:

    8.9662 mm

AD2S99APZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VDD, and then the analog voltage (VA). This ensures proper device operation and prevents latch-up.
  • To optimize the layout, keep the analog and digital grounds separate, use a solid ground plane, and minimize the length of the analog signal traces. Also, place the decoupling capacitors close to the device pins.
  • The AD2S99APZ can support clock frequencies up to 20 MHz, but the maximum frequency may vary depending on the specific application and system requirements.
  • Use the SYNC pin to synchronize the AD2S99APZ with other devices in your system. The SYNC pin can be used to synchronize the conversion process with other devices or to trigger the conversion process.
  • The recommended method is to use a low-impedance source, such as an op-amp, to drive the analog input. This ensures that the input signal is not attenuated and that the device operates within its specified range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD2S99APZ Overview

Use the download button to access the AD2S99APZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD2S9, or try a keyword search, such as Analog Waveform Generation Functions

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
