AD3530BCBZ-RL7 - Analog Devices

Description: ► 16-bit resolution, ±3 LSB16 INL, ±1 LSB16 DNL ► TUE: ±0.22% of FSR maximum ► Offset error: ±1.6mV maximum ► Gain error: ±0.26% of FSR maximum ► Guaranteed sourcing current of 50mA ► Ultra-low headroom: 25mV at 20mA load ► 2.5V internal voltage reference, 5ppm/°C, typical ► 62nV/√Hz noise spectral density (external reference) ► 115nV/√Hz noise spectral density (internal reference) ► Output voltage, current, and die temperature monitors ► 50MHz SPI write and read ► 2.7V to 5.5V power supply range

Download AD3530BCBZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

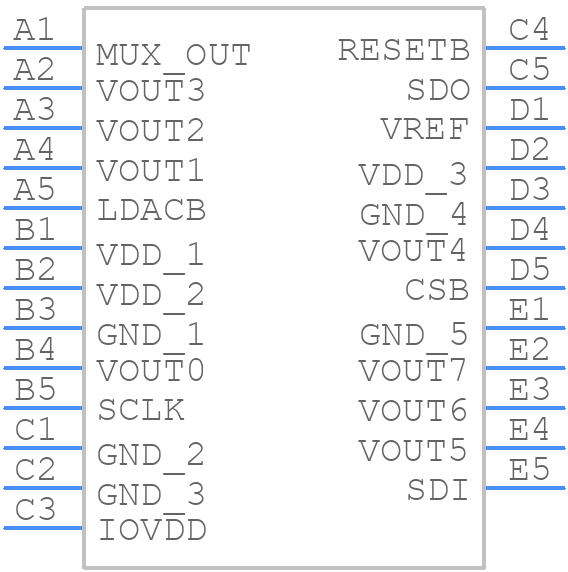

AD3530BCBZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD3530BCBZ-RL7 - Analog Devices PCB footprint - BGA - BGA - AD3530BCBZ-RL7
click to zoom
3D Models
AD3530BCBZ-RL7 - Analog Devices - 3D model - BGA - AD3530BCBZ-RL7
click to zoom

AD3530BCBZ-RL7 Details

  • Manufacturer Part Number:

    AD3530BCBZ-RL7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Converter Type:

    DAC 16BIT

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD3530BCBZ-RL7 Overview

Use the download button to access the AD3530BCBZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD353, or try a keyword search, such as Digital to Analog Converters
