AD3530RBCPZ-RL7 - Analog Devices

Description: 8-Channel, 16-Bit Voltage Output DACs, On-Chip Reference, SPI, 2.7V to 5.5V −40°C to +125°C 20-Lead LFCSP (3 mm × 3 mm × 0.75 mm)

Download AD3530RBCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

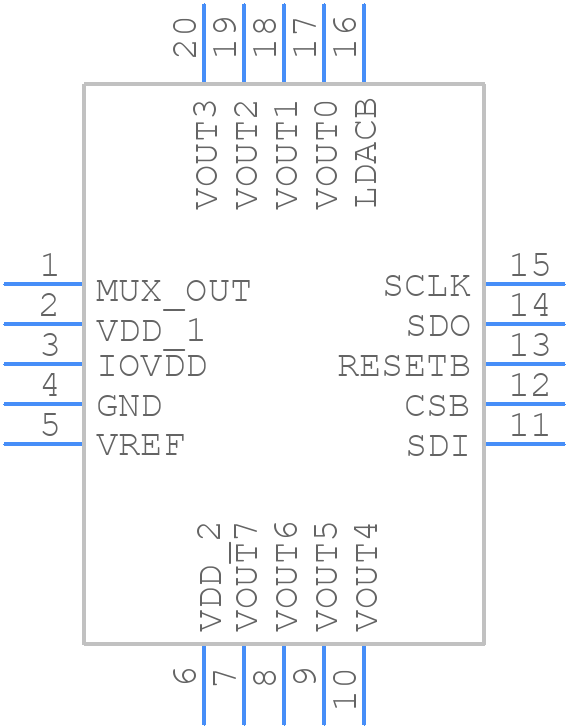

AD3530RBCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD3530RBCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-20-23
click to zoom
3D Models
AD3530RBCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-20-23
click to zoom

AD3530RBCPZ-RL7 Details

  • Manufacturer Part Number:

    AD3530RBCPZ-RL7

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Converter Type:

    DAC 16BIT

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD3530RBCPZ-RL7 Overview

Use the download button to access the AD3530RBCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD353, or try a keyword search, such as Digital to Analog Converters
