AD3541RBCPZ16-RL7 - Analog Devices

Description: Single Channel, 12-/16-Bit, 16 MUPS, Multispan, Multi-IO SPI DAC

Download AD3541RBCPZ16-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

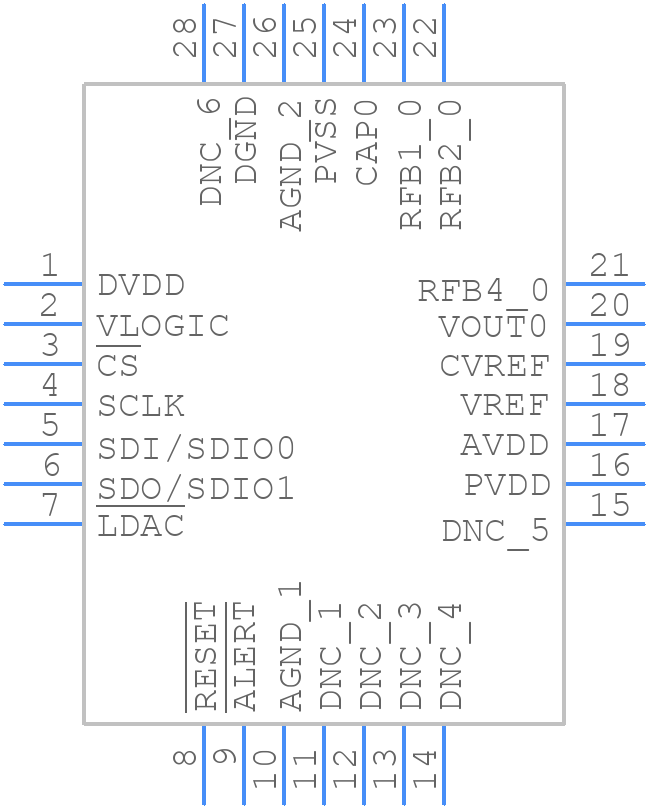

Symbol
AD3541RBCPZ16-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD3541RBCPZ16-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AD3541RBCPZ16-RL7
click to zoom
3D Models
AD3541RBCPZ16-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - AD3541RBCPZ16-RL7
click to zoom

AD3541RBCPZ16-RL7 Details

  • Manufacturer Part Number:

    AD3541RBCPZ16-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    CP-28-15

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    10.163 V

  • Analog Output Voltage-Min:

    -10.163 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N28

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.006103%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC28,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Settling Time-Nom (tstl):

    0.1 µs

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

AD3541RBCPZ16-RL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the AD3541RBCPZ16-RL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the analog and digital sections. Additionally, it's recommended to use a low-ESR capacitor for the VDD pin and to keep the input traces as short as possible.
  • To ensure accurate temperature measurement, it's essential to calibrate the AD3541RBCPZ16-RL7 using a high-accuracy temperature reference. Additionally, the device should be operated within its specified temperature range, and the thermal resistance between the device and the measured object should be minimized.
  • The maximum allowed voltage on the input pins of the AD3541RBCPZ16-RL7 is 5.5V, which is the absolute maximum rating. However, the recommended input voltage range is 0V to VDD (typically 3.3V or 5V). Exceeding the maximum rating can damage the device.
  • The AD3541RBCPZ16-RL7 is a surface-mount device, and its reliability in high-vibration environments depends on the quality of the PCB assembly and the mounting method. However, Analog Devices Inc recommends following the recommended soldering and assembly procedures to ensure the device's reliability in such environments.
  • To troubleshoot issues with the AD3541RBCPZ16-RL7's I2C interface, check the I2C bus voltage levels, clock frequency, and signal integrity. Ensure that the I2C bus is properly terminated, and the slave address is correctly set. Also, verify that the I2C master is functioning correctly and that there are no bus conflicts.
