AD3542RBCPZ16-RL7 - Analog Devices

Description: Dual Channel, 12-/16-Bit, 16 MUPS, Multispan, Multi-IO SPI DAC

Download AD3542RBCPZ16-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

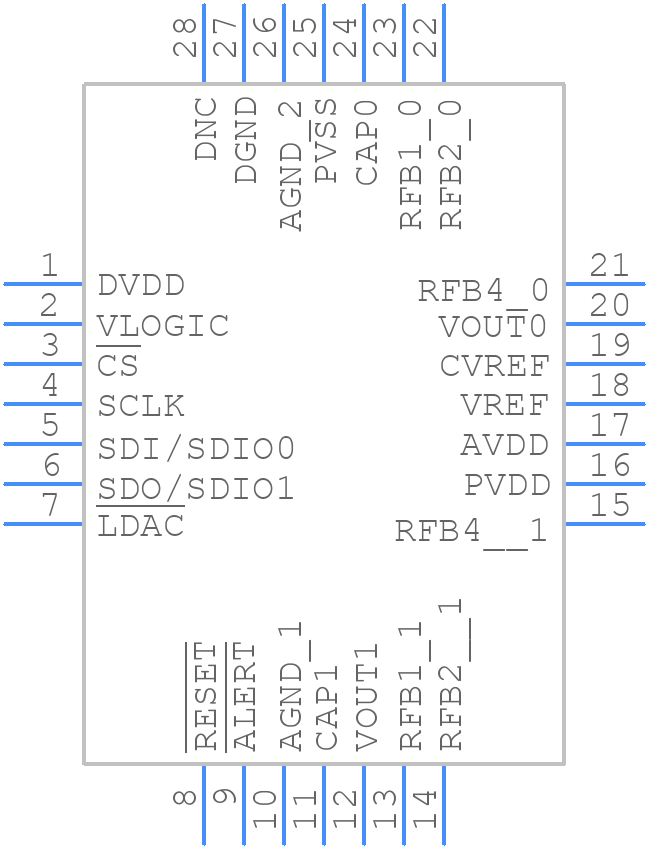

Symbol
AD3542RBCPZ16-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD3542RBCPZ16-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AD3542RBCPZ16-RL7aa
click to zoom
3D Models
AD3542RBCPZ16-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - AD3542RBCPZ16-RL7aa
click to zoom

AD3542RBCPZ16-RL7 Details

  • Manufacturer Part Number:

    AD3542RBCPZ16-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-40

  • Pin Count:

    28

  • Manufacturer Package Code:

    CP-28-15

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    7.5 V

  • Analog Output Voltage-Min:

    -2.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N28

  • Length:

    4 mm

  • Linearity Error-Max (EL):

    0.006103%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC28,.16SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Settling Time-Nom (tstl):

    0.1 µs

  • Supply Current-Max:

    28.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

AD3542RBCPZ16-RL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the AD3542 datasheet, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • Analog Devices offers a variety of tools and resources, including evaluation boards, software, and application notes, to help engineers configure the AD3542RBCPZ16-RL7 for their specific application. It's recommended to consult the AD3542 datasheet and relevant application notes for guidance.
  • The AD3542RBCPZ16-RL7 has an operating temperature range of -40°C to +125°C, as specified in the datasheet. However, it's essential to consider the specific application and environmental conditions to ensure reliable operation within the specified temperature range.
  • To ensure EMC, follow proper PCB design and layout guidelines, use shielding and filtering techniques, and consider the AD3542RBCPZ16-RL7's electromagnetic radiation characteristics. Analog Devices provides guidance on EMC in the AD3542 datasheet and relevant application notes.
  • A proper power supply decoupling scheme is crucial for the AD3542RBCPZ16-RL7's performance. Analog Devices recommends using a combination of ceramic and electrolytic capacitors, as well as a ferrite bead or inductor, to filter out noise and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD3542RBCPZ16-RL7 Overview

Use the download button to access the AD3542RBCPZ16-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD354, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
