AD3552RBCPZ16-RL7 - Analog Devices

Description: Dual Channel, 16-Bit, 33 MUPS, Multispan, Multi-IO SPI DAC

Download AD3552RBCPZ16-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

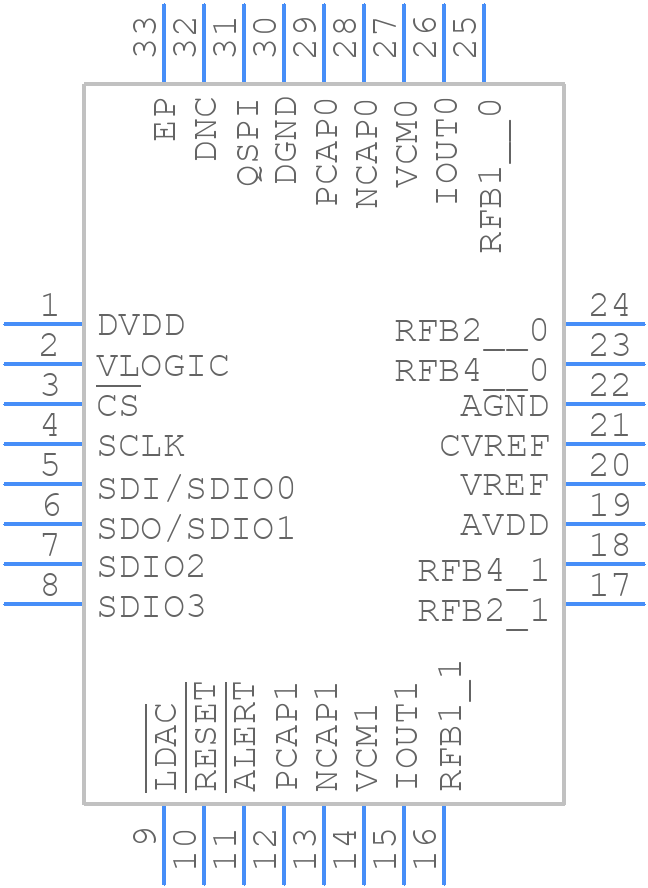

Symbol
AD3552RBCPZ16-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD3552RBCPZ16-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-30*
click to zoom
3D Models
AD3552RBCPZ16-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-30*
click to zoom

AD3552RBCPZ16-RL7 Details

  • Manufacturer Part Number:

    AD3552RBCPZ16-RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-30

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Converter Type:

    DAC 16BIT

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.006103516%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Settling Time-Nom (tstl):

    0.1 µs

  • Supply Current-Max:

    28.5 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

AD3552RBCPZ16-RL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide in the AD3552 evaluation board documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance.
  • The AD3552 has an internal calibration mechanism, but it may require external calibration for high-accuracy applications. Analog Devices provides a calibration procedure in the datasheet, which involves applying specific input voltages and measuring the output codes.
  • The maximum sampling rate of the AD3552 is 250 kSPS, and it affects the power consumption significantly. At higher sampling rates, the power consumption increases, so it's essential to balance the sampling rate with power consumption requirements.
  • The AD3552 has built-in overvoltage and undervoltage protection, which prevents damage to the device in case of voltage faults. However, it's still essential to add external protection circuitry to ensure the device operates within the recommended voltage range.
  • Analog Devices recommends using a combination of ceramic and electrolytic capacitors for power supply decoupling, with a minimum of 10 μF of capacitance per supply pin. This helps to reduce noise and ensure stable operation.
