AD420AN-32 - Analog Devices

Description: Digital to Analog Converters - DAC IC 16-BIT

Download AD420AN-32 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

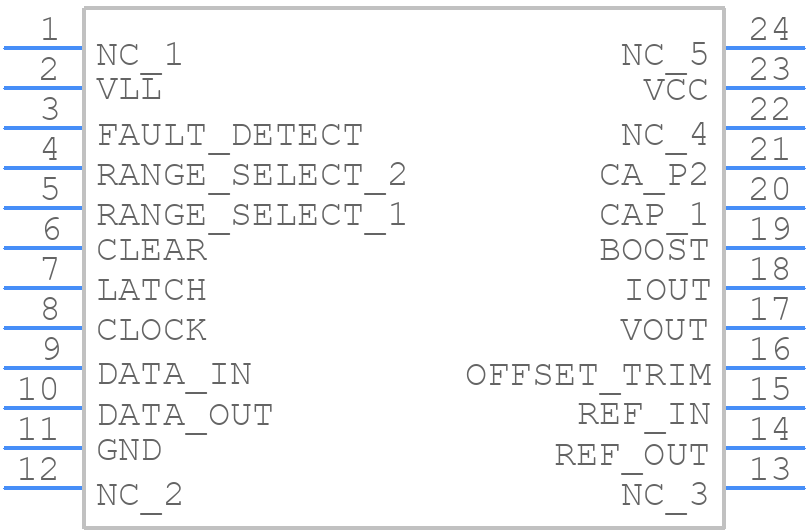

AD420AN-32 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD420AN-32 - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-24-1
click to zoom
3D Models
AD420AN-32 - Analog Devices - 3D model - Dual-In-Line Packages - N-24-1
click to zoom

AD420AN-32 Details

  • Manufacturer Part Number:

    AD420AN-32

  • Source Url Status Check Date:

    2013-05-01 14:56:09.687

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, MS-001, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e0

  • Length:

    31.75 mm

  • Linearity Error-Max (EL):

    0.012%

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Max:

    3000 µs

  • Settling Time-Nom (tstl):

    2500 µs

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD420AN-32 Frequently Asked Questions (FAQs)

  • The AD420AN-32 requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • The AD420AN-32's high gain and high impedance input require careful signal conditioning and filtering to prevent noise and oscillations. It is recommended to use a low-pass filter or a band-pass filter to condition the input signal, and to ensure that the input impedance is matched to the device's input impedance.
  • The AD420AN-32 requires a well-regulated power supply with adequate decoupling to ensure optimal performance. It is recommended to use a combination of ceramic and electrolytic capacitors to decouple the power supply, with a minimum of 10uF of capacitance per power pin.
  • To optimize the AD420AN-32's performance for low noise and high accuracy, it is recommended to use a low-noise power supply, minimize the input signal noise, and use a high-quality analog-to-digital converter. Additionally, the device's gain and offset should be calibrated and trimmed to optimize its performance.
  • The AD420AN-32 is specified to operate over a temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures, and it is recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance.
