AD420ANZ-32 - Analog Devices

Description: AD420ANZ-32, 16 bit-Bit DAC 400sps, SPI, Microwire, 24-Pin PDIP

Download AD420ANZ-32 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

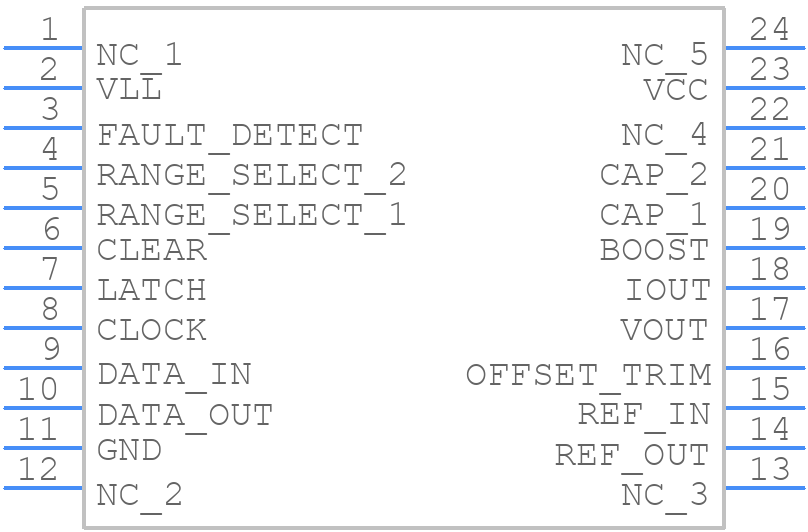

Symbol
AD420ANZ-32 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD420ANZ-32 - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N-24-1--
click to zoom
3D Models
AD420ANZ-32 - Analog Devices - 3D model - Dual-In-Line Packages - N-24-1--
click to zoom

AD420ANZ-32 Details

  • Manufacturer Part Number:

    AD420ANZ-32

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, MS-001, DIP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    N-24-1

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDIP-T24

  • JESD-609 Code:

    e3

  • Length:

    31.75 mm

  • Linearity Error-Max (EL):

    0.012%

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.33 mm

  • Settling Time-Max:

    3000 µs

  • Settling Time-Nom (tstl):

    2500 µs

  • Supply Current-Max:

    5.5 mA

  • Supply Voltage-Nom:

    24 V

  • Surface Mount:

    NO

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

AD420ANZ-32 Frequently Asked Questions (FAQs)

  • The AD420ANZ-32 requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog-to-digital converter (ADC) and to use a ground plane to reduce noise. Additionally, it is recommended to use a separate analog and digital power supply to minimize digital noise coupling.
  • To optimize the performance of the AD420ANZ-32 in a noisy environment, it is recommended to use shielding, filtering, and grounding techniques to minimize electromagnetic interference (EMI). Additionally, using a low-pass filter at the input of the device can help to reduce high-frequency noise.
  • The AD420ANZ-32 can handle input voltages up to ±10V, but it is recommended to limit the input voltage to ±5V to ensure optimal performance and to prevent damage to the device.
  • The AD420ANZ-32 requires calibration to ensure accurate measurements. Calibration involves applying a known input voltage and adjusting the device's gain and offset to achieve the desired output. The calibration process can be done using a calibration signal or a calibration routine provided by the manufacturer.
  • The typical settling time of the AD420ANZ-32 is around 10-15 microseconds, but this can vary depending on the input signal frequency and amplitude. It is recommended to consult the datasheet or contact the manufacturer for more information on settling time.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD420ANZ-32 Overview

Use the download button to access the AD420ANZ-32 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD420, or try a keyword search, such as Digital to Analog Converters
