AD45335KBCZ - Analog Devices

Description: 32-Channel, 14-Bit DAC with Full-Scale Output Voltage Programmable from 50 V to 200 V

Download AD45335KBCZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AD45335KBCZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints

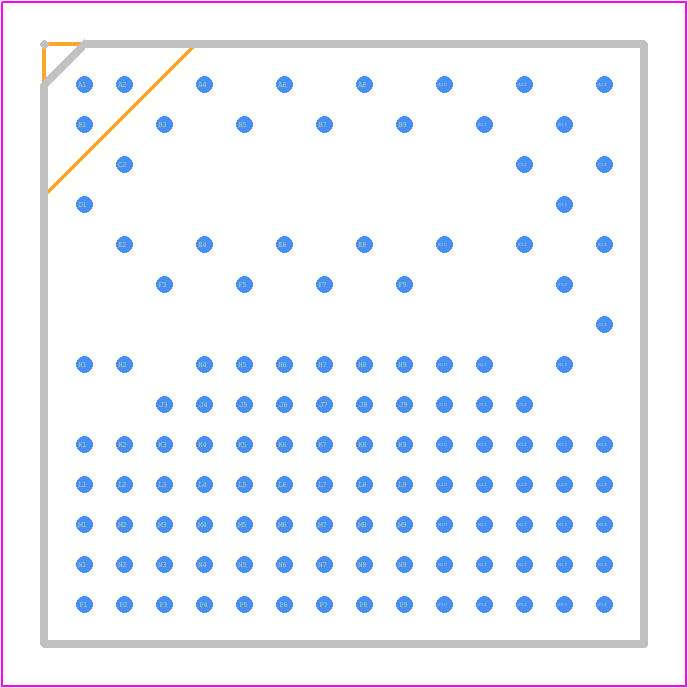

AD45335KBCZ - Analog Devices PCB footprint - BGA - BGA - 124-Lead Chip Scale Package Ball Grid Array [CSP_BGA]-
click to zoom
3D Models
AD45335KBCZ - Analog Devices - 3D model - BGA - 124-Lead Chip Scale Package Ball Grid Array [CSP_BGA]-
click to zoom

AD45335KBCZ Details

  • Manufacturer Part Number:

    AD45335KBCZ

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CHIP SCALE BGA

  • Package Description:

    CSPBGA-196/124

  • Pin Count:

    124

  • Manufacturer Package Code:

    CHIP SCALE BGA

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Output Voltage-Max:

    222.5 V

  • Analog Output Voltage-Min:

    1 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    S-XBCS-B124

  • Length:

    15 mm

  • Linearity Error-Max (EL):

    0.00061035%

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    124

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -10 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    BCS

  • Package Equivalence Code:

    BGA124,14X14,40

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP SCALE

  • Seated Height-Max:

    1.4 mm

  • Settling Time-Nom (tstl):

    470 µs

  • Supply Current-Max:

    20 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    15 mm

AD45335KBCZ Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding layout, keeping the analog and digital grounds separate, and placing the device close to the analog signal sources. Additionally, ensure that the device is placed away from high-frequency noise sources and digital signals.
  • Consult the datasheet and application notes for guidance on configuring the device. Consider factors like input signal amplitude, desired output voltage range, and required bandwidth. Use the device's internal gain settings and external resistors to achieve the desired configuration.
  • The device has a maximum junction temperature of 150°C. Ensure good thermal conductivity by using a heat sink or thermal pad, and follow proper PCB design guidelines for thermal management. Operate the device within the recommended temperature range to ensure reliability.
  • Consult the datasheet and application notes for troubleshooting guidelines. Check for proper power supply connections, ensure correct configuration and gain settings, and verify that the input signals are within the recommended range. Use oscilloscopes or other diagnostic tools to identify and isolate issues.
  • Follow proper PCB design guidelines for EMI and RFI mitigation, such as using shielding, grounding, and decoupling techniques. Ensure that the device is placed in a shielded area, and use EMI filters or chokes to reduce noise. Consult the datasheet and application notes for specific guidance on EMI and RFI considerations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD45335KBCZ Overview

Use the download button to access the AD45335KBCZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD453, or try a keyword search, such as Digital to Analog Converters
