AD5025BRUZ-REEL7 - Analog Devices

Description: Digital to Analog Converters - DAC 2 x 12bit 1LSB buffered DAC LDAC

Download AD5025BRUZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

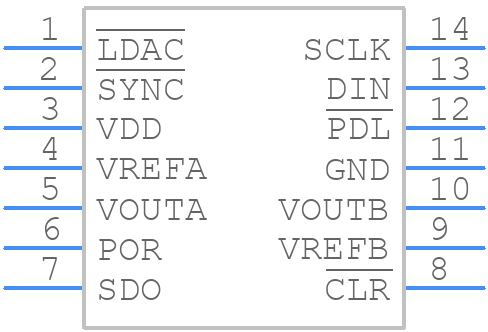

AD5025BRUZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5025BRUZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RU-14 (TSSOP)
click to zoom
3D Models
AD5025BRUZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RU-14 (TSSOP)
click to zoom

AD5025BRUZ-REEL7 Details

  • Manufacturer Part Number:

    AD5025BRUZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB-1, TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    10.7 µs

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5025BRUZ-REEL7 Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding configuration, keep the analog and digital grounds separate, and place the device close to the analog signal sources. Additionally, ensure that the device is decoupled from the power supply using capacitors and that the PCB layout is designed to minimize electromagnetic interference (EMI).
  • The AD5025BRUZ-REEL7 is a highly configurable device. To properly configure it, refer to the datasheet and application notes, which provide detailed information on setting the gain, offset, and output range. Additionally, Analog Devices provides a range of evaluation boards and software tools to help with configuration and testing.
  • The AD5025BRUZ-REEL7 has a maximum junction temperature of 150°C. To ensure reliable operation, it is essential to provide adequate heat sinking, especially in high-power applications. Use thermal interface materials, and consider using a heat sink or a thermally conductive PCB substrate. Additionally, follow the recommended operating conditions and derating guidelines provided in the datasheet.
  • To troubleshoot issues with the AD5025BRUZ-REEL7, start by consulting the datasheet and application notes. Check the device's configuration, power supply, and signal connections. Use oscilloscopes and other diagnostic tools to identify the source of the problem. Analog Devices also provides technical support and resources, including FAQs, forums, and application engineers, to help resolve issues.
  • The AD5025BRUZ-REEL7 is not a radiation-hardened device. However, Analog Devices offers radiation-hardened versions of some of their products. For EMI considerations, follow proper PCB layout and design practices, use shielding, and ensure that the device is properly decoupled from the power supply. Additionally, consider using EMI filters and shielding components to minimize electromagnetic interference.
