AD5025BRUZ - Analog Devices

Description: AD5025BRUZ, 12-Bit 12 Bit DAC Dual, SPI, Microwire, 14-Pin TSSOP

Download AD5025BRUZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

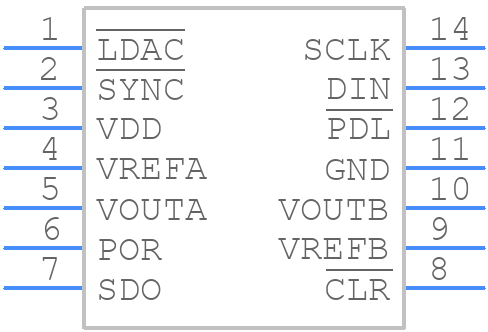

AD5025BRUZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5025BRUZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - AD5025BRUZ
click to zoom
3D Models
AD5025BRUZ - Analog Devices - 3D model - Small Outline Packages - AD5025BRUZ
click to zoom

AD5025BRUZ Details

  • Manufacturer Part Number:

    AD5025BRUZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-153AB-1, TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    RU-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.5 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Settling Time-Nom (tstl):

    10.7 µs

  • Supply Current-Max:

    4 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

AD5025BRUZ Frequently Asked Questions (FAQs)

  • The AD5025BRUZ requires careful layout and placement to minimize noise and ensure optimal performance. It is recommended to place the device close to the analog signal sources, use a solid ground plane, and keep the analog and digital signals separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
  • To optimize the AD5025BRUZ's performance, it is essential to understand the specific requirements of your application. This includes selecting the correct gain and offset settings, choosing the right input range, and optimizing the filter settings. Additionally, it is crucial to consider the noise performance, linearity, and settling time requirements of your application.
  • Potential sources of noise and interference in the AD5025BRUZ include electromagnetic interference (EMI), radio-frequency interference (RFI), and digital noise. To mitigate these effects, it is recommended to use shielding, filtering, and grounding techniques, as well as to keep the device away from noise sources and to use a low-noise power supply.
  • To troubleshoot common issues with the AD5025BRUZ, it is essential to follow a systematic approach. This includes checking the power supply, verifying the input signals, and checking the device's configuration and settings. Additionally, it is recommended to consult the datasheet and application notes, and to contact Analog Devices' support team if necessary.
  • The AD5025BRUZ is sensitive to temperature changes, which can affect its performance and accuracy. It is essential to ensure proper thermal management, including providing adequate heat sinking and airflow, and avoiding high-temperature environments. Additionally, it is recommended to consider the device's thermal characteristics, such as its junction temperature and thermal resistance, when designing the system.
