AD5060ARJZ-1REEL7 - Analog Devices

Description: ANALOG DEVICES - AD5060ARJZ-1REEL7 - Digital to Analogue Converter, 16 bit, 250 kSPS, SPI, 2.7V to 5.5V, SOT-23, 8 Pins

Download AD5060ARJZ-1REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

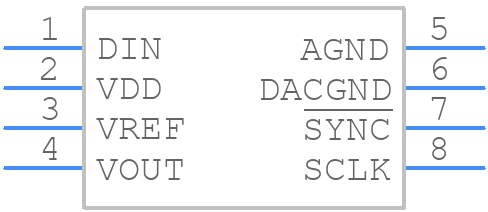

AD5060ARJZ-1REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5060ARJZ-1REEL7 - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - RJ-8 (SOT23)_1
click to zoom
3D Models
AD5060ARJZ-1REEL7 - Analog Devices - 3D model - SOT23 (8-Pin) - RJ-8 (SOT23)_1
click to zoom

AD5060ARJZ-1REEL7 Details

  • Manufacturer Part Number:

    AD5060ARJZ-1REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MO-178BA, SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RJ-8

  • HTS Code:

    8542.39.00.40

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog Output Voltage-Max:

    5.45 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.0031%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

AD5060ARJZ-1REEL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the input and output traces short and away from noise sources.
  • The AD5060ARJZ-1REEL7 has an internal calibration circuitry, but it's recommended to perform an external calibration to ensure optimal performance. The calibration procedure involves applying a known input voltage and adjusting the offset and gain to achieve the desired output code.
  • The AD5060ARJZ-1REEL7 has a maximum junction temperature of 150°C. Ensure good airflow, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, ensure the device is operated within the recommended temperature range of -40°C to 125°C.
  • The AD5060ARJZ-1REEL7 has a power-on reset circuitry that ensures the device is in a known state after power-up. For power-down sequencing, ensure that the digital power supply is turned off before the analog power supply to prevent any unwanted behavior.
  • Use a shielded enclosure, keep the device away from noise sources, and use a common-mode choke to reduce EMI. Also, ensure the device is properly grounded and use a filter capacitor to reduce RFI.
