AD5060YRJZ-1500RL7 - Analog Devices

Description: Analog Devices AD5060YRJZ-1500RL7, Serial DAC, 8-Pin SOT-23

Download AD5060YRJZ-1500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

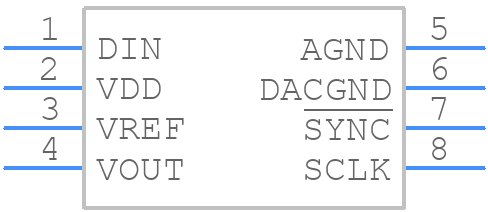

Symbol
AD5060YRJZ-1500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5060YRJZ-1500RL7 - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - RJ-8 (SOT23)_1
click to zoom
3D Models
AD5060YRJZ-1500RL7 - Analog Devices - 3D model - SOT23 (8-Pin) - RJ-8 (SOT23)_1
click to zoom

AD5060YRJZ-1500RL7 Details

  • Manufacturer Part Number:

    AD5060YRJZ-1500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, MO-178BA, SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RJ-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    5.45 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.0023%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Current-Max:

    1.2 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

AD5060YRJZ-1500RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, use a low-ESR capacitor for the VREF pin and keep the noise-sensitive analog signals away from the digital signals.
  • To ensure accuracy and stability, use a high-quality voltage reference, such as the ADR4520, and a stable clock source. Also, consider using a temperature sensor to monitor the temperature and compensate for any temperature-related errors.
  • The recommended power-up sequence is to power up the VDD pin first, followed by the VREF pin, and then the CLK pin. This ensures that the internal circuitry is properly initialized and prevents any damage or incorrect operation.
  • The AD5060YRJZ-1500RL7 can be interfaced with a microcontroller or FPGA using a serial interface, such as SPI or I2C. The specific interface protocol depends on the microcontroller or FPGA being used. Consult the datasheet of the microcontroller or FPGA for specific interface requirements.
  • The recommended method for calibrating the AD5060YRJZ-1500RL7 is to use the internal calibration feature, which can be initiated by setting the CAL pin high. This feature allows the device to calibrate its internal circuitry and ensure optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AD5060YRJZ-1500RL7 Overview

Use the download button to access the AD5060YRJZ-1500RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AD506, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
