AD5061BRJZ-2500RL7 - Analog Devices

Description: Analog Devices AD5061BRJZ-2500RL7, 16 bit Serial DAC, 8-Pin SOT-23

Download AD5061BRJZ-2500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

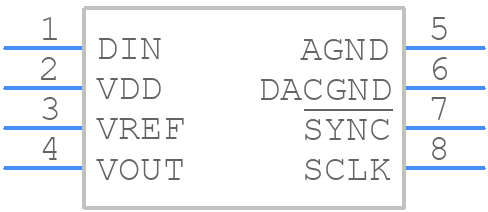

Symbol
AD5061BRJZ-2500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5061BRJZ-2500RL7 - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - 8-Lead Small Outline Transistor Package [SOT-23] (RJ-8)-1
click to zoom
3D Models
AD5061BRJZ-2500RL7 - Analog Devices - 3D model - SOT23 (8-Pin) - 8-Lead Small Outline Transistor Package [SOT-23] (RJ-8)-1
click to zoom

AD5061BRJZ-2500RL7 Details

  • Manufacturer Part Number:

    AD5061BRJZ-2500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RJ-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Output Voltage-Max:

    4.096 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

AD5061BRJZ-2500RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, use a low-ESR capacitor for the VREF pin and keep the input and output traces short and direct.
  • To ensure accuracy and stability, use a high-quality voltage reference, keep the device away from heat sources, and use a stable power supply. Also, consider using a temperature sensor to monitor the device temperature and compensate for any temperature-related errors.
  • The recommended power-up sequence is to power up the VDD pin first, followed by the VREF pin, and then the digital interface. During power-down, reverse the sequence. This ensures that the device powers up and down safely and prevents any potential damage.
  • The AD5061BRJZ-2500RL7 uses a serial interface, and the clock speed should be within the recommended range of 1 MHz to 20 MHz. Ensure that the clock signal is clean and stable, and use a suitable protocol for data transfer, such as SPI or I2C.
  • To minimize EMI and ensure EMC, use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter on the input and output signals. Also, ensure that the device is properly grounded and use a common-mode choke on the power supply lines.
