AD5061YRJZ-1500RL7 - Analog Devices

Description: 16-Bit VOUT,??nanoDAC??, SPI Interface, 2.7 V to 5.5 V in an SOT-23

Download AD5061YRJZ-1500RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

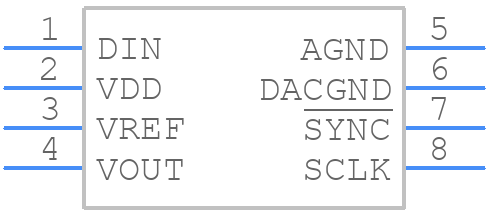

Symbol
AD5061YRJZ-1500RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD5061YRJZ-1500RL7 - Analog Devices PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - SOT23 5/6/8 Leads-1
click to zoom
3D Models
AD5061YRJZ-1500RL7 - Analog Devices - 3D model - SOT23 (8-Pin) - SOT23 5/6/8 Leads-1
click to zoom

AD5061YRJZ-1500RL7 Details

  • Manufacturer Part Number:

    AD5061YRJZ-1500RL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOT-23, 8 PIN

  • Pin Count:

    8

  • Manufacturer Package Code:

    RJ-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    4.096 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.0061%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Settling Time-Max:

    10 µs

  • Settling Time-Nom (tstl):

    4 µs

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

AD5061YRJZ-1500RL7 Frequently Asked Questions (FAQs)

  • A good layout and routing practice is to keep the analog and digital grounds separate, use a solid ground plane, and keep the analog and digital signals separate. Also, keep the input and output traces as short as possible and avoid crossing them over each other.
  • The AD5061YRJZ-1500RL7 has an internal calibration circuit that calibrates the device during power-up. However, if external calibration is required, it can be done using the CAL pin. The calibration procedure involves applying a known voltage to the input and adjusting the CAL pin to achieve the desired output code.
  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures that the analog circuitry is powered up before the digital circuitry, preventing any potential damage or incorrect operation.
  • The AD5061YRJZ-1500RL7 has a maximum junction temperature of 150°C. To handle thermal management, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, consider using thermal interface materials to improve heat transfer.
  • To minimize electromagnetic interference, use a shielded enclosure, keep the device away from high-frequency sources, use a common-mode choke on the input, and ensure good grounding practices. Also, consider using EMI filters on the input and output signals.
