AD5061YRJZ-1REEL7 - Analog Devices

Description: 16-Bit VOUT,??nanoDAC??, SPI Interface, 2.7 V to 5.5 V in an SOT-23

Download AD5061YRJZ-1REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

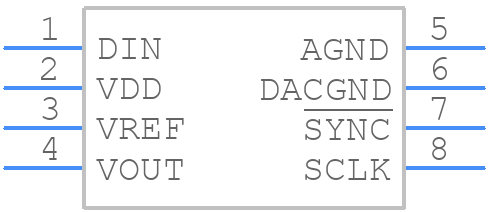

AD5061YRJZ-1REEL7 - Analog Devices - PCB symbol
